Camperise
12V DC Power Panel Dual Battery Voltmeter 2X USB & 2X Ciga 6 Ways Surface Mount
12V DC Power Panel Dual Battery Voltmeter 2X USB & 2X Ciga 6 Ways Surface Mount
Couldn't load pickup availability

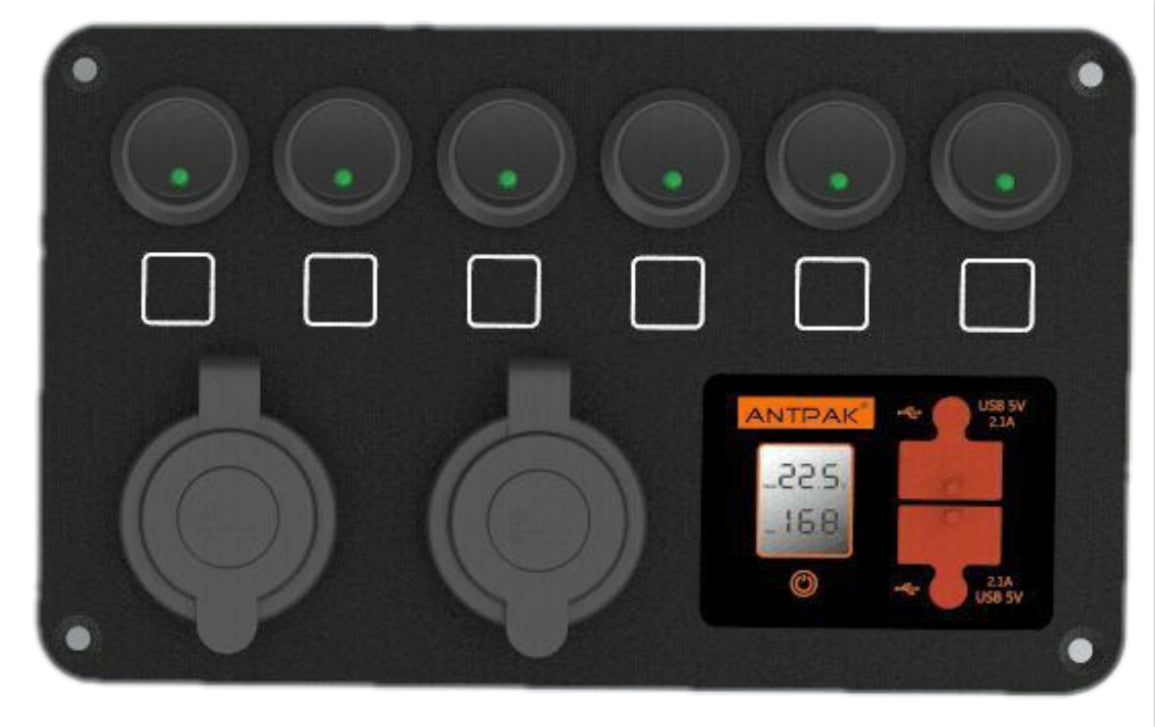

ANTPAK 12V DC Power Panel – 6-Switch, Dual Voltmeter, 2x USB, 2x Cigar Sockets – Surface Mount (4WD, Marine, Caravan)
Key Features
🔋 Dual Battery Monitoring: Integrated LCD voltmeter tracks two batteries simultaneously, perfect for dual systems in 4WDs, boats, or caravans.
🔌 6-Channel Control: 6 x individually fused switches (10A each) to manage accessories (e.g., lights, fridges, air compressors) + 1x15A main fuse for full-circuit protection.
🔧 All-in-One Power Hub:
- 2 x 2.1A USB ports (4.2A total) for fast charging phones, tablets, or GPS devices.
- 2 x 12V cigar sockets (fused) for inverters, pumps, or tools.
🛡️ Rugged Aluminum Build: Heavy-duty anodized aluminum panel (190mm x 120mm) housed in an ABS surface-mount box (190x121x55mm) for heat, moisture, and vibration resistance.

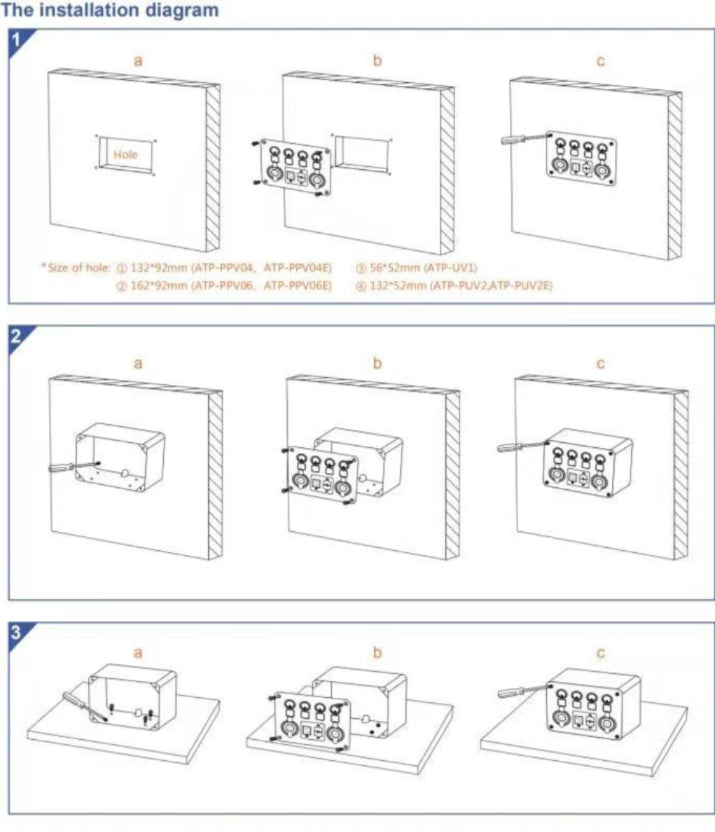

⚡ DIY-Ready: Pre-wired with cut-out template, screws, and manual – installs in minutes!

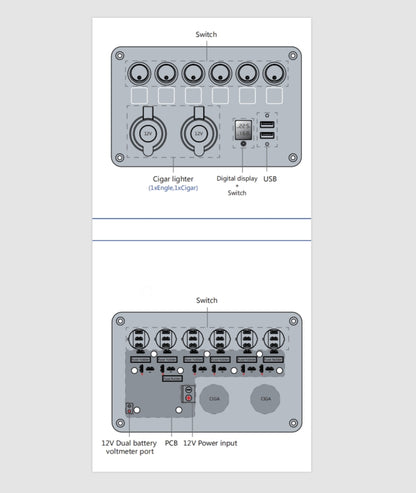

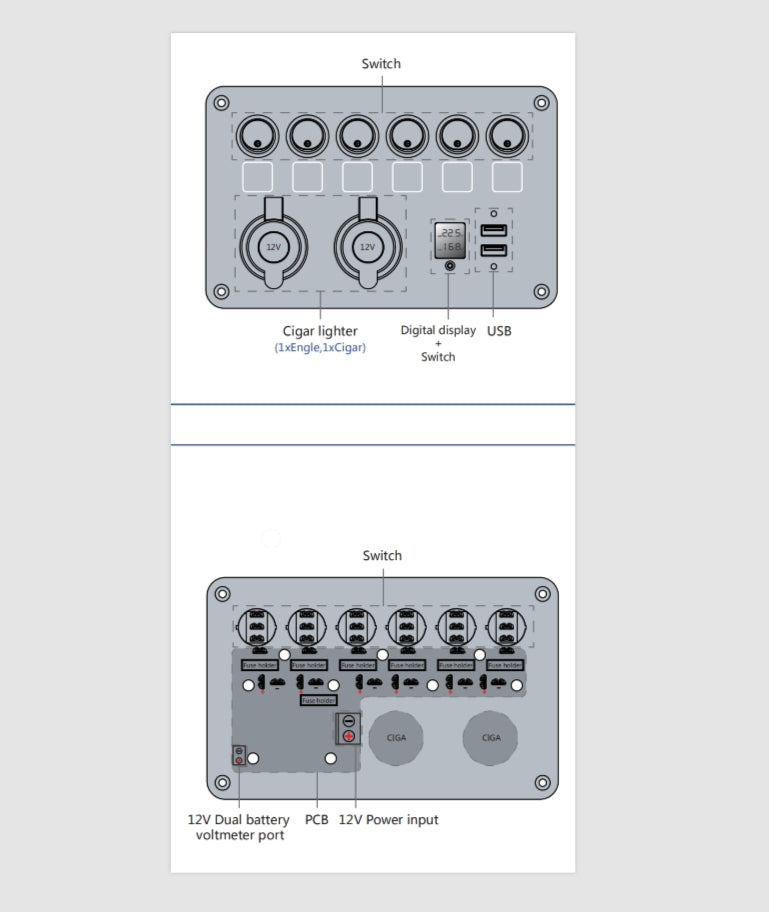

Technical Specifications
| Parameter | Details |
|---|---|
| Voltage Range | 12V DC (12V/24V compatible) |
| USB Output | 2 x 2.1A (4.2A combined) |
| Cigar Sockets | 2 x 12V outlets (fused) |
| Switch Fuses | 6 x 10A blade fuses (replaceable) |
| Main Fuse | 15A blade fuse (replaceable) |
| Display | Backlit LCD dual voltmeter |
| Panel Material | Anodized aluminum (scratch-resistant) |
| Mounting Box Material | ABS plastic (UV/impact-resistant) |
| Cut-Out Template | 190mm x 120mm (included) |
Applications
- 4WD & Off-Road: Power light bars, winches, fridges, or compressors while monitoring battery health.
- Marine & Boats: Run bilge pumps, navigation gear, or USB devices in wet environments.
- Caravans/Campers: Central hub for lighting, fans, or portable appliances.
- Workshops: Organize 12V tools, air pumps, or emergency power systems.
Why Choose This Panel?
✅ Expandable Control: Manage 6 circuits (e.g., 5 loads + 1 output) with fused switches for precision.
✅ Pro-Grade Safety: Each accessory and socket is individually fused to prevent overloads.
✅ Angled Surface Mount: Upward-tilted design for easy access in dashboards, drawers, or tight spaces.
✅ Adventure-Ready: Built to withstand dust, moisture, and rough terrain.
Included
- 1 x Aluminum power panel with 6 switches.
- 1 x ABS surface-mount box.
- 6 x 10A blade fuses + 1 x 15A blade fuse.
- 1 x Cut-out template (cardboard).
- Mounting screws.
- Instruction manual.
Perfect For:
- Off-road enthusiasts needing advanced power management.
- Marine engineers requiring corrosion-resistant solutions.
- Caravan owners streamlining on-the-go energy needs.
Power Smarter, Travel Safer – Engineered for Extreme Reliability! 🚙⚡🌊
