ANTPAK BP-800 Portable Lithium BATTERY BOX 800W INVERTER DC DC CHARGER SOLAR
ANTPAK BP-800 Portable Lithium BATTERY BOX 800W INVERTER DC DC CHARGER SOLAR
Regular price
$499.00
Regular price
Sale price
$499.00
Unit price
per
Taxes included.
Couldn't load pickup availability

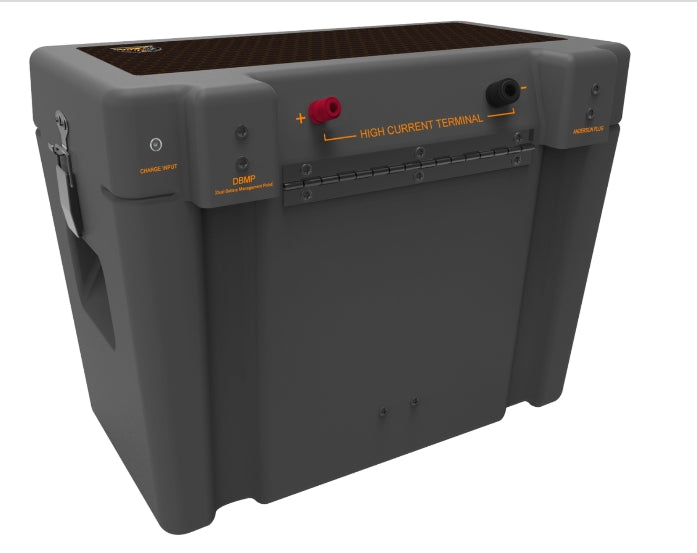

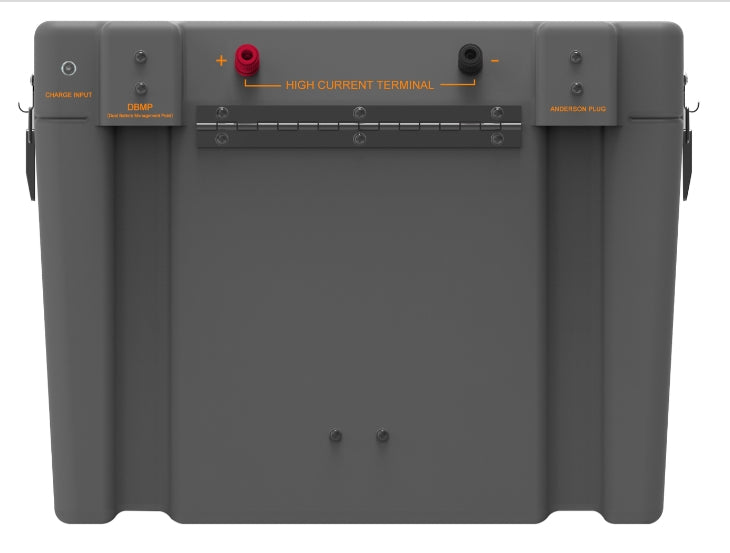

ANTPAK BP-800 Ultimate 12V Battery Box with 300W Pure Sine Wave Inverter & Dual Battery System
Portable Power Station for Camping, RVs, and Emergency Backup
Key Features
🔋 All-in-One Power Solution
- Integrated 800W pure sine wave inverter (AC 240V output) for running sensitive electronics like laptops, refrigerators, and medical devices.

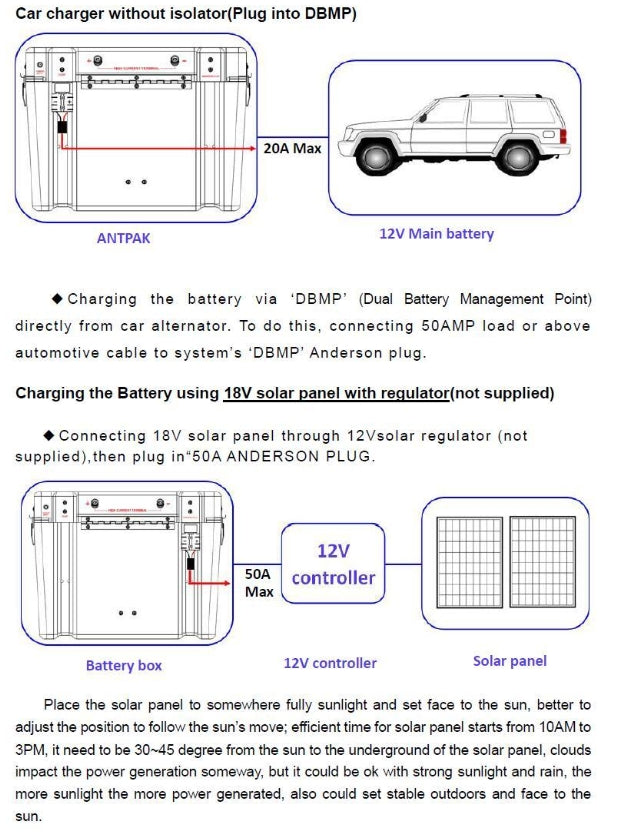

- 20A DC-DC Battery Charger with dual-battery management system (supports AGM, Gel, Calcium, and Lead Acid batteries up to 130Ah).
- Built-in solar regulator (compatible with ≤300W panels) for off-grid solar charging.

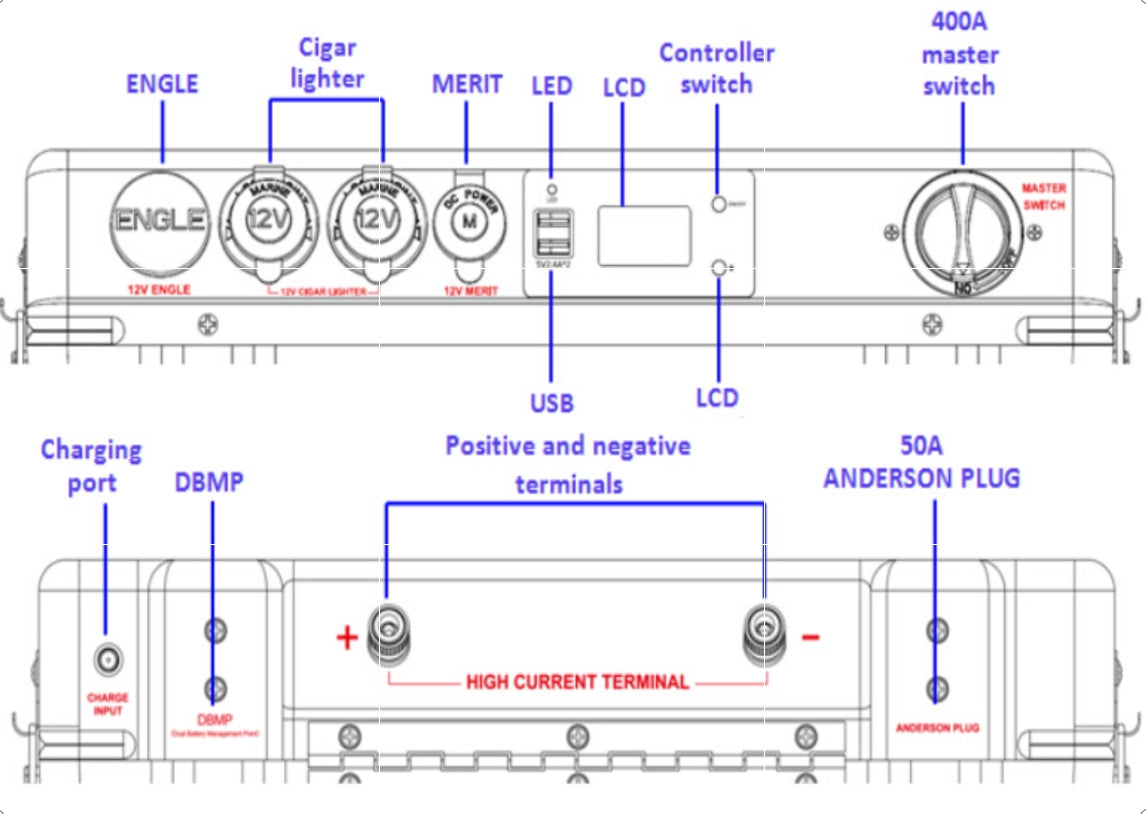

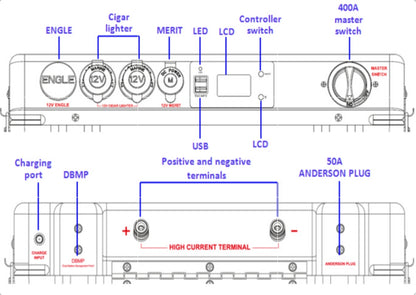

🔌 Versatile Connectivity

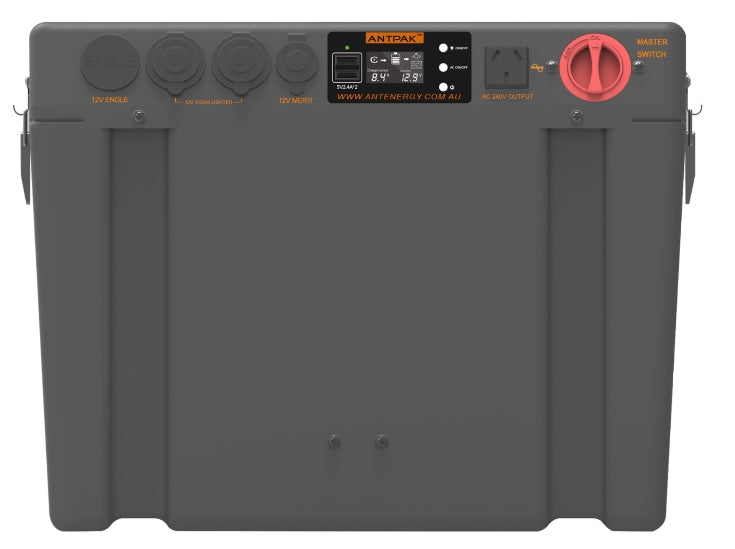

- 4x DC Outputs: 2× 12V power ports, 2× cigar lighter sockets, 1× Anderson plug (50A), 1× Merit/Engle sockets.

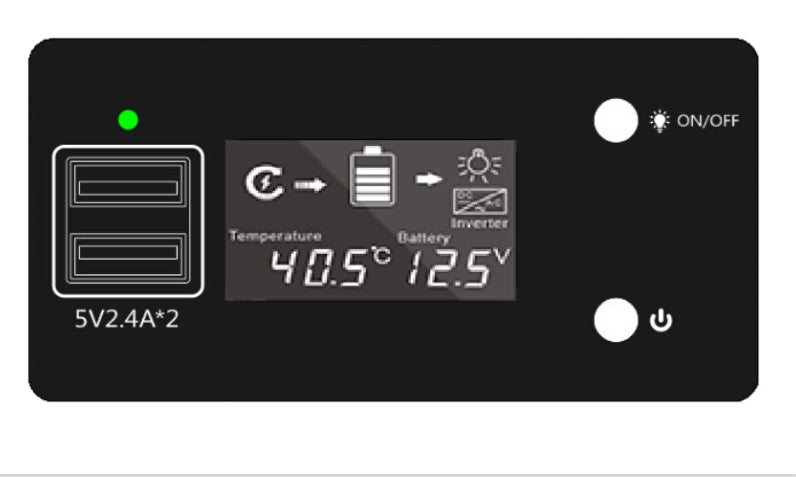

- 2x USB Ports (5V/2.4A each) for charging tablets, phones, or cameras.
- Jump-Start Terminals for emergency battery boosts.
🛡️ Smart Safety & Protection
- Overload, short-circuit, overvoltage (14.4V), undervoltage (10.5V), and temperature protection.
- 50A Auto-Reset Circuit Breaker safeguards connected devices.

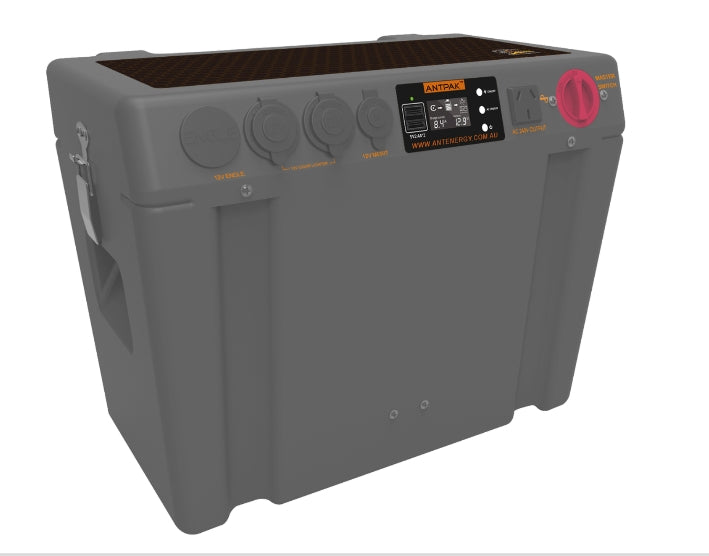

📏 Compact & Durable Design
- External Dimensions: 400mm (L) × 250mm (W) × 315mm (H).
- Sealed ABS plastic casing for dust/water resistance (IP30-rated).
- Includes quick-release mounting bracket for secure installation in vehicles or work sites.
Included Components
- ANTPAK BP-800 Battery Box ×1

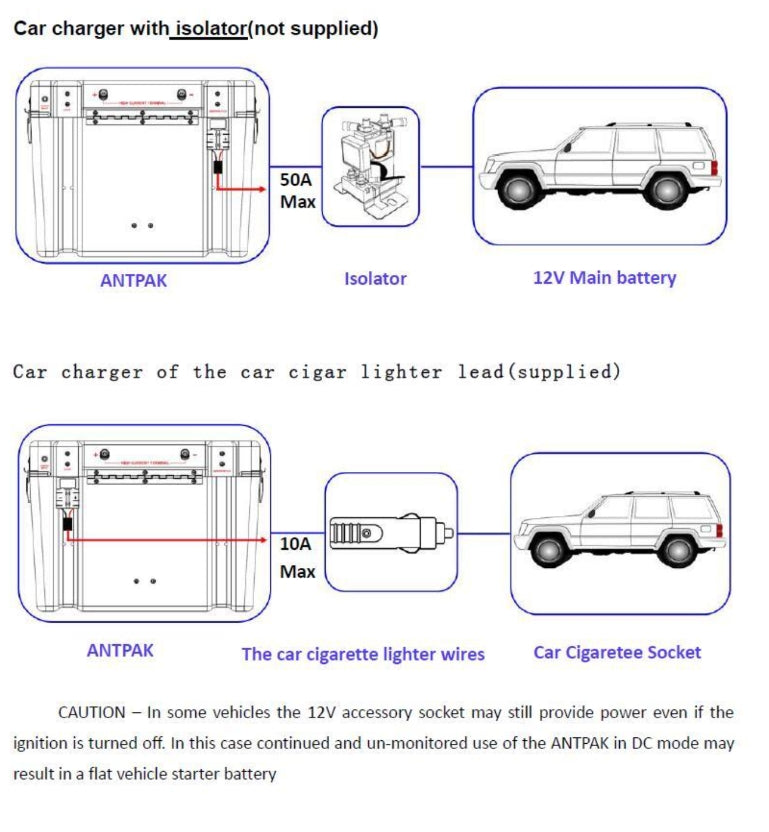

- 20A DC-DC Charger with Cigarette Socket ×1
- Quick-Release Mounting Kit ×1
- Exclusions: AC charger and battery (sold separately).

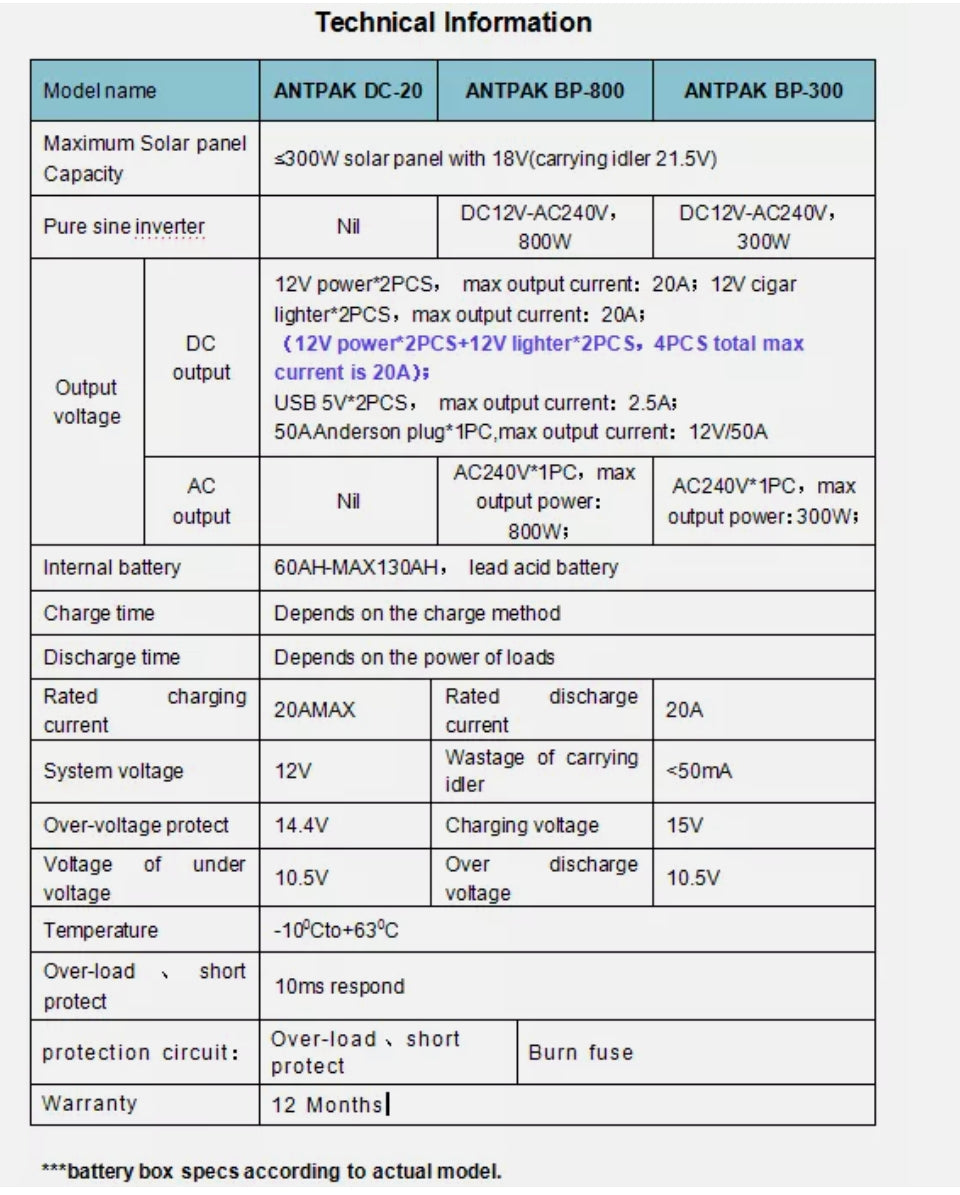

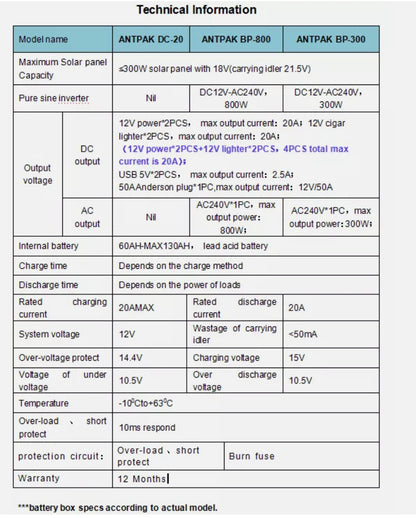

Technical Specifications
| Parameter | Details |
|---|---|
| Inverter | 800W pure sine wave (AC 240V ±10%, 50/60Hz) |
| Battery Compatibility | 12V AGM/Gel/Calcium Lead Acid (60–130Ah) |
| Charging System | 20A multi-stage DC-DC charger with solar input (18V–21.5V MPPT) |
| Protection | Overload (10ms response), short circuit, reverse polarity, temperature |
| Solar Input | Max 300W panel (open-circuit voltage ≤21.5V) |
| Weight | 3.0 kg (net) |
| Warranty | 12 months |
Ideal For
- Outdoor Adventures: Power camping gear, lights, or portable stoves.
- Emergency Backup: Keep essential devices running during power outages.
- RV/4WD Modifications: Dual-battery setup for extended trips or auxiliary systems.
- Worksite Power: Run tools, compressors, or safety equipment.
FAQ
Q: Can I leave the BP-800 plugged in overnight?
A: Yes! The built-in float mode prevents overcharging and ensures safe, continuous power.
Q: Does it work with solar panels?
A: Absolutely! The integrated solar regulator optimizes energy harvest from panels up to 300W.
Q: Is it waterproof?
A: Not fully waterproof. Use in dry, shaded areas or add a protective cover.
Q: How long does it take to charge a 100Ah battery?
A: ~5–8 hours via alternator (20A) or solar (weather-dependent).
Why Choose ANTPAK BP-800?
- Plug-and-Play: Effortlessly integrate with existing vehicle systems via Anderson plug.
- Space-Saving: Compact design fits in tight spaces while housing high-capacity components.
- Future-Proof: Compatible with most 12V systems and expandable for solar setups.
