Camperise
NSP Cells SOLAR Poly 5BB 12V 90W Solar Panel Caravan Boat Camping Charging
NSP Cells SOLAR Poly 5BB 12V 90W Solar Panel Caravan Boat Camping Charging
Regular price
$39.00
Regular price
$99.00
Sale price
$39.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
The ANTPAK 90W Rigid Solar Panel is a high-performance, single-module power solution featuring premium Neo Solar Power (NSP) 5BB Poly-Crystalline cells. Utilising advanced PERC technology, this panel achieves an impressive 20% efficiency, delivering up to 50% more power per unit area than conventional poly panels. Built with a heavy-duty anodized aluminium frame and low-iron tempered glass, it is specifically engineered for long-term outdoor mounting on campers, caravans, and boats.
Share

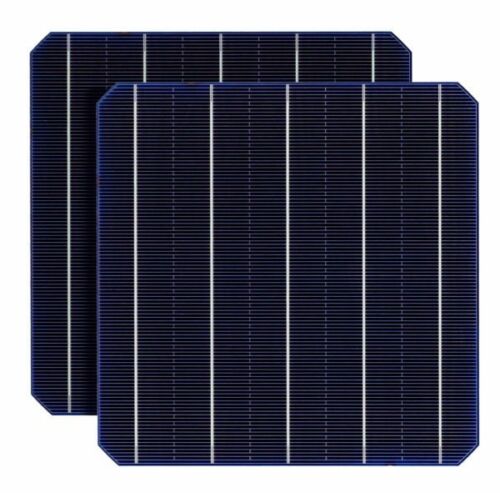

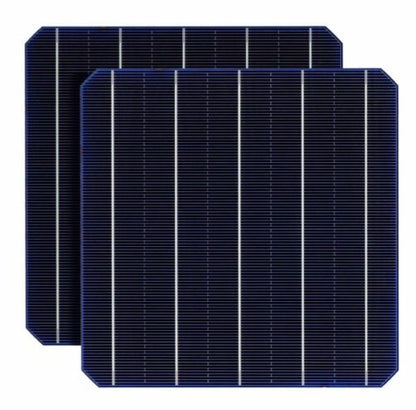

- Exclusive 5BB Technology: The 5-Busbar (5BB) design enhances current collection and reliability compared to standard solar cells.
- High-Efficiency PERC Cells: Upgraded PERC production line allows this poly panel to surpass the 20% efficiency mark, outperforming traditional 18-19% P-type cells.
- Rugged Marine-Grade Build: Features a corrosion-resistant anodised aluminium frame and low-iron tempered refraction glass for maximum durability.
- Smart Design: Equipped with frame drainage holes to prevent water accumulation and freezing, plus a pre-cabled junction box for fast installation.
- Brand: ANTPAK SOLAR

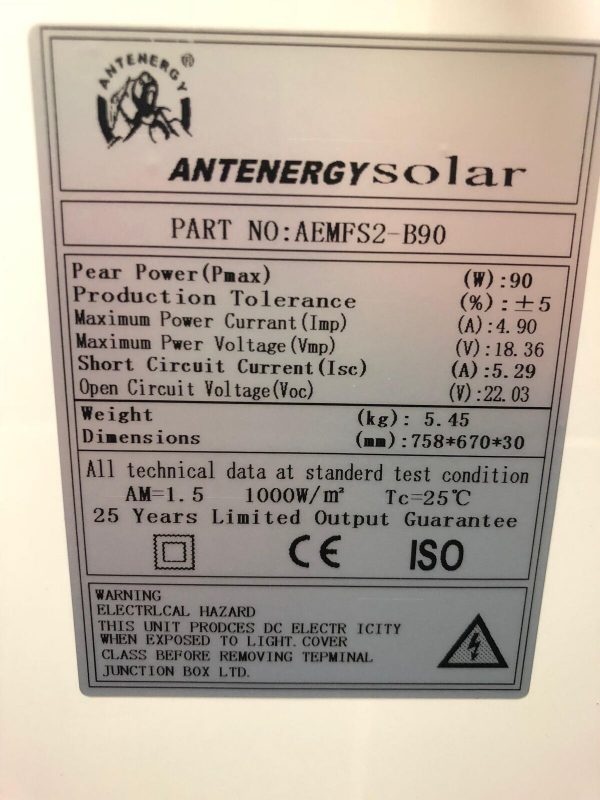

- Model: AEMFS2-B90
- Panel Type: High-quality 5BB Poly-Crystalline (NSP PERC Technology)
- Power Output: 90W
- Cell Efficiency: 20% approx.
- Maximum Power Voltage (Vmp): 18.36V
- Maximum Power Current (Imp): 4.9A
- Open Circuit Voltage (Voc): 22.03V
- Short Circuit Current (Isc): 5.29A
- Production Tolerance: ±5%
- Maximum System Voltage: 700V DC
- Product Dimensions: 756mm x 670mm x 30mm
- Weight: 5.45 kg
- Frame: Heavy-Duty Anodized Aluminium
- Operating Temperature: -40°C to +85°C
- Load Capacity: 60m/s (200kg/sq/m) wind resistance; Hail resistant
- Caravan & Motorhome: Permanent roof-mount for consistent 12V battery maintenance.
- Marine & Boating: Saltwater-resistant frame ideal for boat battery charging.
- Off-Grid Storage: Compact size perfect for small sheds, gates, or remote monitoring systems.
Certified Reliability: Australian C-tick (N30428), CE, ISO9001, and ISO 14001 certified.
Includes a 25-year limited output guarantee, ensuring stable power performance for decades.
