Technical Specifications Protection Features Outputs Applications Bundle Includes Warranty Shipping & Returns
DC-DC Charger: 20A multi-stage (alternator input)Solar Regulator: Built-in MPPT, supports panels up to 300W (18-21.5V)LED Display: Voltage, current, temperature, charge statusBattery Compatibility: 12V Lithium (LiFePO4), AGM, Gel (60-135Ah)Circuit Breaker: 50A auto-reset (10ms response)Internal Dimensions: 330mm (L) x 200mm (W) x 250mm (H)External Dimensions: 400mm (L) x 250mm (W) x 315mm (H)Operating Temperature: -10°C to +63°CProtection Rating: IP30
Overvoltage protection (14.4V) Undervoltage protection (10.5V) Short circuit protection Temperature protection Dual battery isolation (protects starter battery)

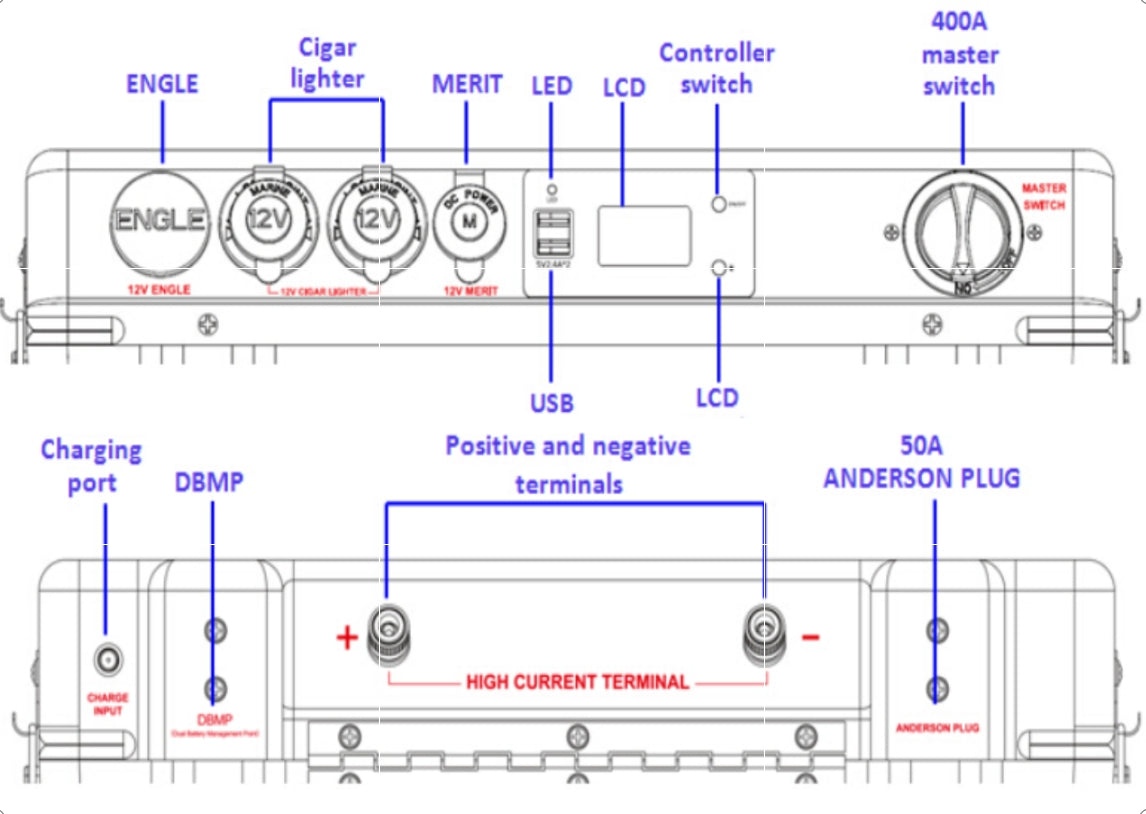

2 x USB ports (5V/2.4A each) 3 x Cigarette sockets (12V) 1 x Merit socket 2 x 50A Anderson plugs External jump-start terminals
4WD dual battery systems with lithium batteries Caravan and RV auxiliary power Camping fridges, lighting, and device charging Solar charging setups Emergency backup power
ANTPAK DC20 battery box 20A DC-DC charger (cigarette plug) Quick-release mounting bracket kit Note: Battery and AC charger not included.
1 year Australian warranty with local support and service.
