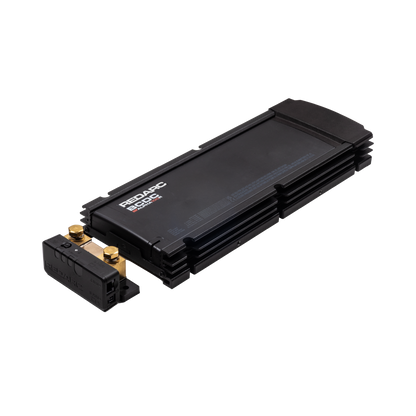

REDARC 12V 100A DC/DC BLUETOOTH MODEL BCDC ALPHA100R BATTERY CHARGER

• Maximum Rated Output Current: 100A continuous
• Output Voltage: 12V nominal (9-16V operating range)
• Maximum Output Power: 1600W
• Input Voltage Range (Alternator): 9-32V DC
• Maximum Input Current (Alternator): 110A
• Input Voltage Range (Solar): 9-48V DC
• Maximum Input Current (Solar): 110A
• Maximum Solar Panel Capacity: 2000W with MPPT tracking
• Operating Temperature Range (Main Unit): -20°C to +60°C with thermal derating at high temperatures
• Smart Battery Monitor Operating Voltage: 9-32V DC
• Smart Battery Monitor Temperature Range: -20°C to +60°C
• Current Measurement Range: ±500A capacity
• Current Measurement Accuracy: ±0.3% at 1-500A range at 50°C
• Voltage Measurement Accuracy: ±0.7%
• Battery Temperature Sensor Range: -40°C to +100°C
• Battery Temperature Sensor Accuracy: ±3°C
• Connectivity Protocol: Bluetooth Low Energy, R-Bus (RJ45) for TVMS integration
• Recommended Battery Capacity: 100Ah to 1250Ah auxiliary batteries
• Compliance Standards: RCM certified, Australian electrical safety approved

Large caravan and motorhome battery systems requiring high-output DC-DC conversion for multiple appliances

Expedition 4WD vehicles with auxiliary battery banks powering inverters, fridges, and high-draw equipment

Camper trailer and slide-on camper setups with extensive solar panel arrays and large battery capacity

Ute canopy and tray-back conversions running high-power tools and equipment in remote locations

Off-grid touring vehicles with induction cooktops, air conditioning, and multiple refrigeration units

Marine vessel house battery charging from high-output alternators and large solar arrays

Mobile workshop and trade vehicle power management requiring rapid recharge capabilities

Emergency service and rescue vehicle dual-battery configurations with critical power requirements

Agricultural and mining equipment auxiliary power systems with extended runtime demands

Recreational vehicle (RV) battery charging supporting full-time living with household appliances

Solar-first builds prioritizing renewable energy capture and alternator load reduction

Hybrid vehicle auxiliary power systems requiring sophisticated alternator current management

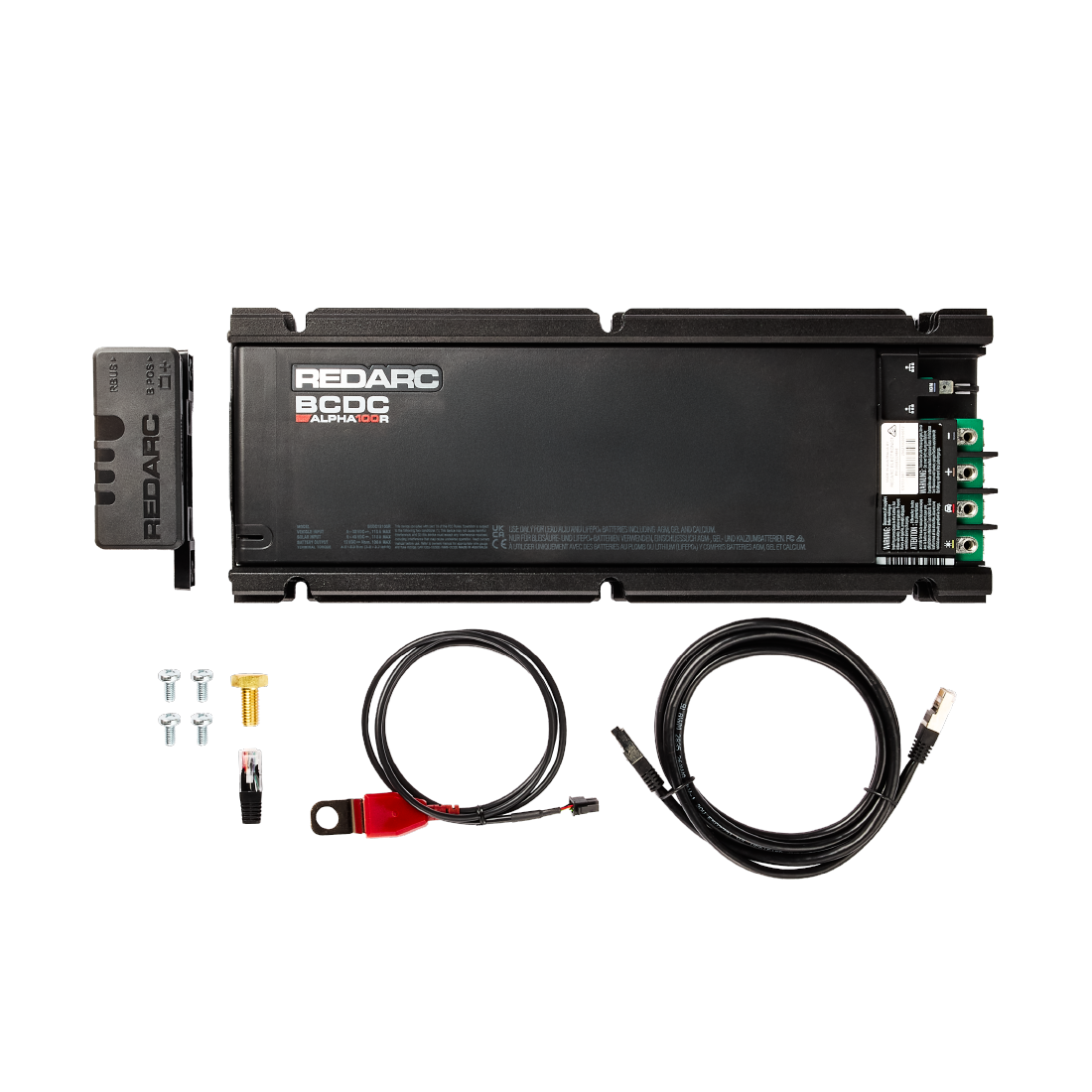

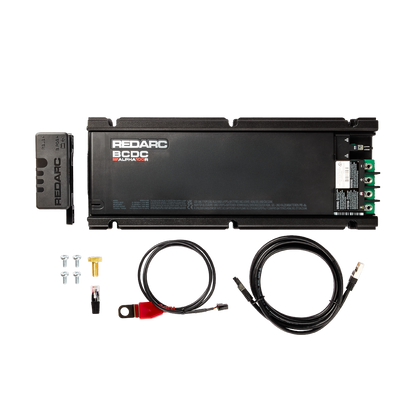

• BCDC Alpha100 R main charging unit with protective terminal cover
• Smart Battery Monitor with integrated push-button interface and LED status indicator
• Battery sense lead cable (1 meter length) for accurate voltage monitoring
• R-Bus communication cable (2 meter RJ45 cable) for TVMS system integration
• Terminating resistor for R-Bus network configuration
• Mounting fasteners: Four M6 × 12mm screws for main unit mounting
• Mounting fasteners: One M10 × 20mm bolt for battery terminal connection
• Installation manual and configuration guide

Warranty Period
2 years manufacturer warranty (REDARC standard)

Coverage
Covers manufacturing defects in materials and workmanship for BCDC Alpha100 R unit (BCDC12100R), included Smart Battery Monitor, battery sense lead, R-Bus cable, terminating resistor, and mounting hardware. Warranty applies from date of purchase with valid proof of purchase.

Exclusions
Does not cover damage from improper installation, incorrect input voltage exceeding specified ranges (9-32V DC alternator, 9-48V DC solar), reverse polarity connection, input current exceeding 110A limits, physical impact damage, water ingress from inadequate sealing or mounting, overheating from insufficient ventilation clearance (minimum 50mm clearance required all sides), or use with incompatible battery types without proper configuration. Thermal derating at high ambient temperatures is normal operating behavior and not a warranty defect.

Installation Requirements
Installation must follow REDARC installation manual specifications. Warranty validity requires proper wire gauge selection for 100A current capacity (minimum 6mm² recommended), secure mounting in ventilated location with thermal clearance, correct fusing on all inputs (125A recommended for alternator input), proper battery sense lead connection, and programming for correct battery chemistry. Installation by qualified automotive electrician strongly recommended for high-current applications.

Firmware Updates
Regular firmware updates through RedVision app may be required to maintain warranty validity and access latest charging algorithms and MPPT optimization features.

Australian Support
All warranty claims processed through REDARC Australia with local technical support. Service provided through authorized REDARC service centers nationwide. Warranty terms comply with Australian Consumer Law provisions.
