REDARC 12V 50A DC/DC BLUETOOTH BCDC ALPHA50 BATTERY CHARGER WIRING KIT
REDARC 12V 50A DC/DC BLUETOOTH BCDC ALPHA50 BATTERY CHARGER WIRING KIT
Regular price
$1,199.00
Regular price
$1,299.00
Sale price
$1,199.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability

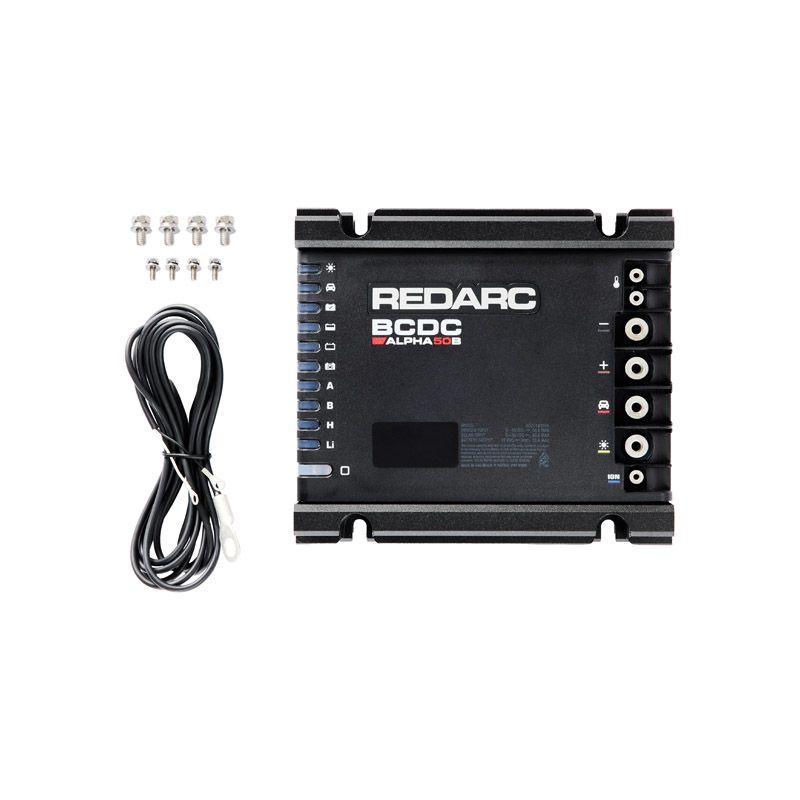

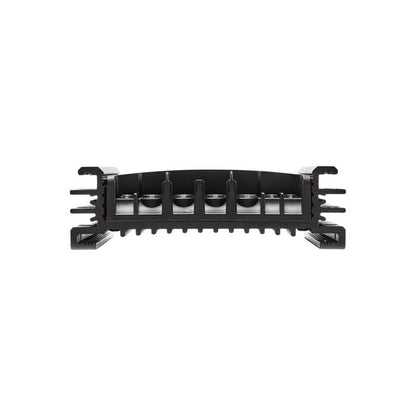

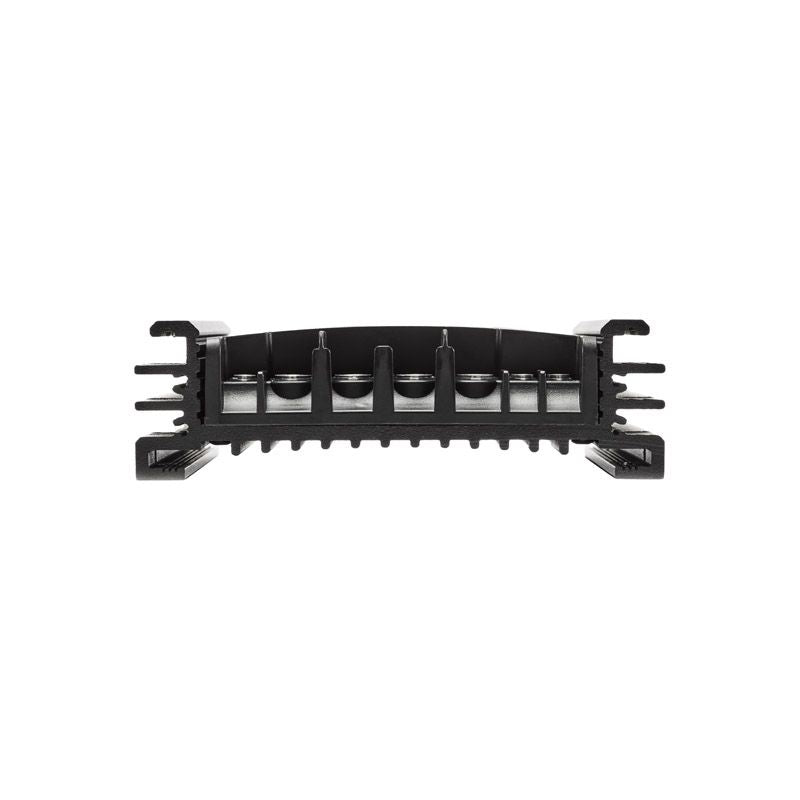

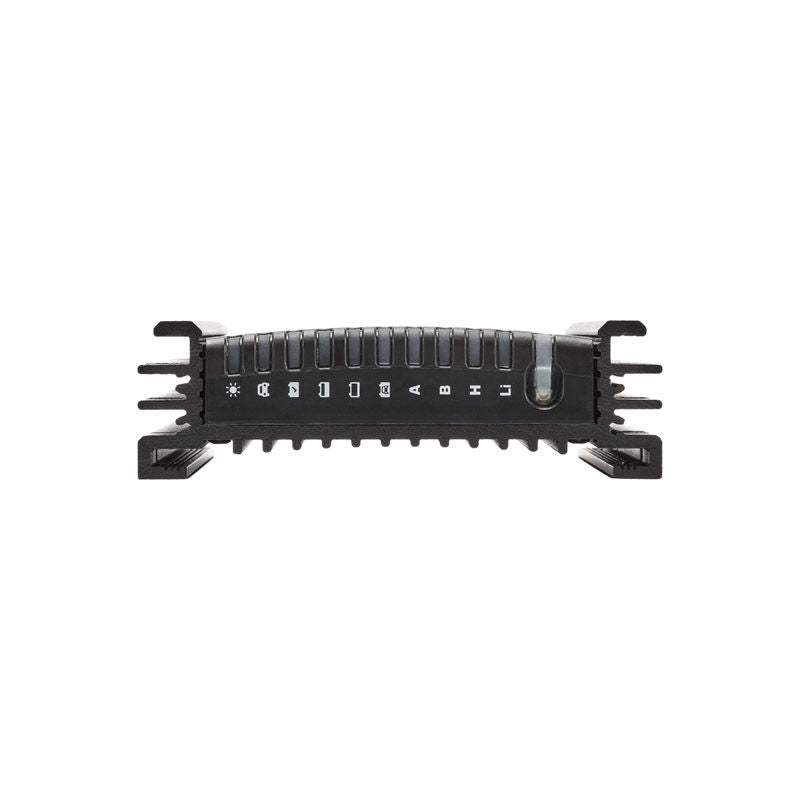

The REDARC BCDC Alpha 50A (model BCDC12050B) is a 12V DC-to-DC battery charger rated for 50 ampere output that charges auxiliary batteries from vehicle alternator and solar panel inputs. This unit features IP67/69K environmental protection rating, Bluetooth connectivity for the RedVision smartphone application, and multi-stage charging profiles compatible with AGM, gel, calcium, lithium (LiFePO4), and standard lead-acid battery types. The package includes the charger unit and BCDC Alpha 50A rear installation wiring kit.
Share

- 50 ampere maximum charging output from dual input sources
- Bluetooth 4.2 connectivity with RedVision app monitoring
- IP67 dust-tight rating and IP69K high-pressure water jet protection
- Green Power Priority technology for solar input prioritization
- Start battery recovery function (15-minute boost charge capability)
- Maximum Power Point Tracking (MPPT) solar regulation
- Adjustable input current limiting (10A-50A range)
- Three-stage charging algorithm (bulk, absorption, float)
- Screw terminal connections (no soldering required)
- Over-the-air firmware update capability
- Australian design and manufacturing (AS/NZS standards compliant)
Input Parameters
- DC input voltage range: 9V-32V (alternator source)
- Solar input voltage range: 9V-32V
- Maximum input current: 50A (adjustable)
- Solar MPPT voltage range: 13V-32V
Output Parameters
- Charging current: 50A continuous
- Output voltage: 14.4V (standard) / 14.6V (lithium mode)
- Float voltage: 13.3V (battery type dependent)
Physical Specifications
- Dimensions: 275mm × 130mm × 65mm
- Weight: 1.8kg (charger unit)
- Operating temperature: -40°C to +80°C
- Environmental rating: IP67/IP69K certified
Electrical Characteristics
- Reverse polarity protection: Built-in
- Overvoltage protection: 32V cutoff
- Short circuit protection: Automatic shutdown
- Thermal management: Temperature-compensated charging
Vehicle Types
- 4WD and off-road vehicles with auxiliary battery systems
- Caravans and motorhomes requiring dual battery management
- Marine vessels with house battery configurations
- Commercial vehicles with extended electrical accessories
- Agricultural and mining equipment with 12V systems
Battery Compatibility
- Lithium Iron Phosphate (LiFePO4) batteries (100Ah-200Ah typical)
- AGM deep cycle batteries
- Gel cell batteries
- Calcium content batteries
- Standard flooded lead-acid batteries
Power Source Integration
- Vehicle alternator (standard automotive 12V systems)
- Solar panel arrays (50W-500W typical configurations)
- Hybrid alternator + solar charging systems
- Australian Standards AS/NZS 4020 compliance
- IP67 dust-tight and temporary immersion protection
- IP69K high-temperature high-pressure water jet protection
- RCM (Regulatory Compliance Mark) certified for Australia/New Zealand
- C-Tick electromagnetic compatibility certification

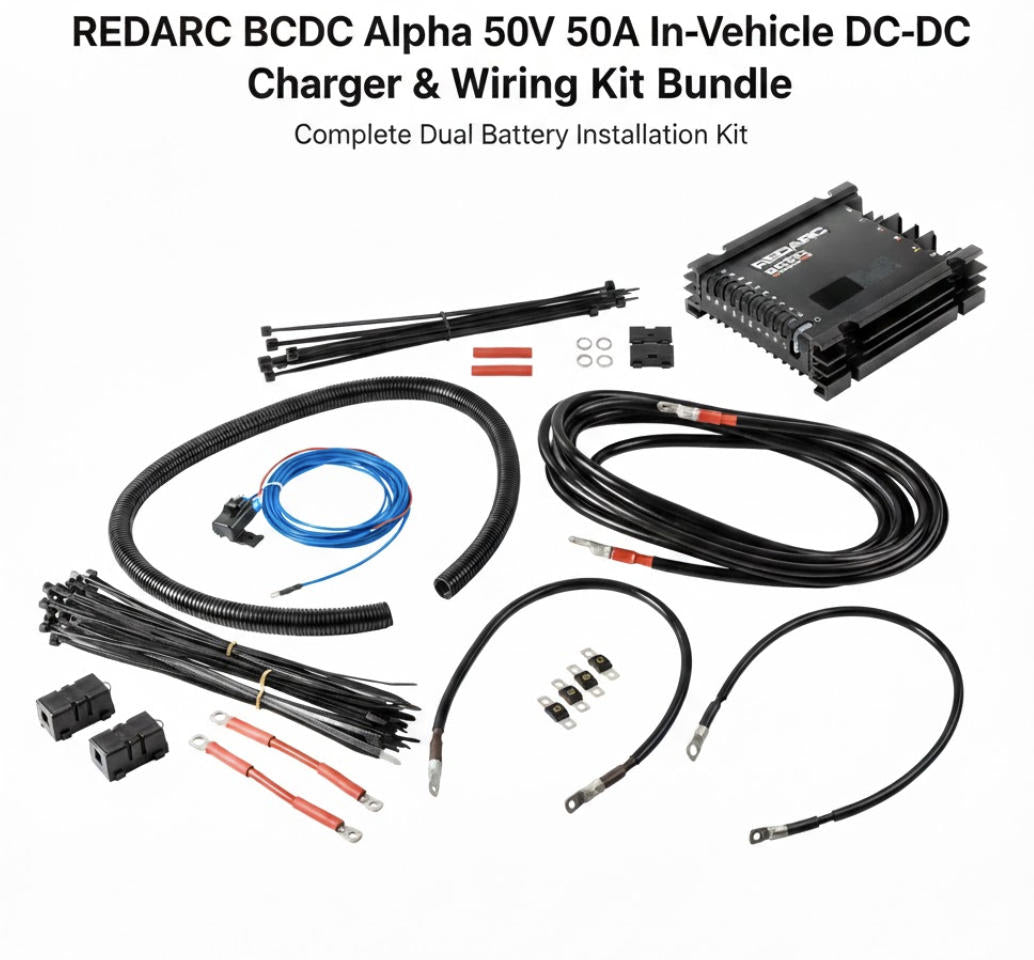

- REDARC BCDC Alpha 50A charger unit (BCDC12050B)
- BCDC Alpha 50A wiring kit for rear installation
- Installation manual with wiring diagrams
- Mounting hardware set
- 6mm² cable suitable for maximum 3-meter cable run
- Rear installation wiring harness with pre-terminated connections
- Mounting bracket hardware for vertical or horizontal orientation
- Cable ties and strain relief components
- Installation manual with wiring diagrams
- 2-year manufacturer warranty from date of purchase
- Covers manufacturing defects and component failures under normal use
- Warranty void if unit tampered with or incorrectly installed
- Australian consumer law rights apply (ACL statutory guarantees)
- Warranty claim requires proof of purchase and serial number verification
- Return to authorized REDARC service center for warranty assessment
- Compatible with 12V vehicle electrical systems (9V-32V operating range)
- Anderson SB50 connector compatible for primary connections
- MC4 or Anderson connector for solar panel integration
- Requires 50A rated circuit breaker or fuse on positive input line
- Vehicle chassis earth connection required
- Compatible with standard automotive alternator outputs
