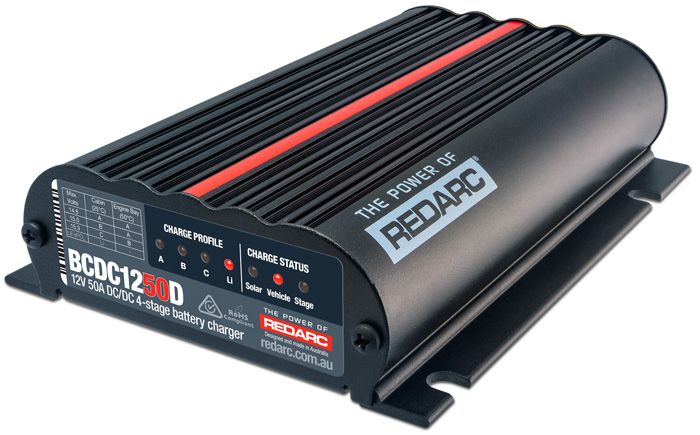

Redarc BCDC Classic50 12V 50A DC TO DC Battery Charger BCDC1250D MPPT REGULATOR

• Maximum Rated Output Current: 50A continuous
• Output Voltage: 12V DC nominal
• Nominal Output Power: 750W
• Maximum Charging Voltage: 15.3V
• Input Voltage Range (Alternator): 9-32V DC
• Input Voltage Range (Solar): 9-32V DC
• Solar Switch-On Voltage: 9V minimum
• Recommended Input Fuse Rating: 60A (REDARC FK60 fuse kit recommended, not supplied)
• Recommended Output Fuse Rating: 60A (REDARC FK60 fuse kit recommended, not supplied)
• Operating Temperature Range: -15°C to +80°C
• Standby Current Consumption: Less than 8mA
• No-Load Current Consumption: Less than 100mA
• Dimensions (Length/Depth): 165mm
• Dimensions (Width): 120mm
• Dimensions (Height): 37mm
• Unit Weight: 1.0kg
• Connection Type: Bare wire screw terminals
• Compatible Vehicle Systems: 12V and 24V electrical systems
• MPPT Solar Regulation: Integrated Maximum Power Point Tracking
• Recommended Battery Capacity: Over 200Ah auxiliary batteries
• Compatible Alternator Types: Standard and variable voltage (smart) alternators
• Supported Battery Chemistries: Standard lead-acid, Calcium content, Gel, AGM, LiFePO4
• Installation Locations: Engine bay, cabin, canopy, trailer mounting approved
• Compliance Standards: Australian electrical safety certified, tested for Australian conditions

• Large 4WD and off-road vehicle battery systems requiring high-output DC-DC conversion for extended remote travel
• Caravan and camper trailer dual-battery setups with solar panel integration exceeding 200Ah capacity
• Expedition vehicle auxiliary battery banks powering multiple fridges, lighting, and communication equipment
• Ute canopy and tray-back conversions with large battery capacity for tools and equipment in remote locations
• Long-range touring vehicles with battery banks over 200Ah requiring fast recharge capabilities
• Off-grid camper builds with extensive solar arrays and large auxiliary battery systems
• Marine vessel house battery charging from engine alternator and solar panels in 12V or 24V configurations
• Mobile workshop and trade vehicle power management with high-capacity battery banks
• Agricultural and farming equipment auxiliary power systems with extended runtime requirements
• Emergency service and rescue vehicle dual-battery configurations with critical power demands
• Recreational vehicle (RV) battery charging supporting extended off-grid camping periods
• Dual-battery systems in vehicles with modern variable voltage smart alternators requiring compatible charging
• Solar-first builds prioritizing renewable energy capture and alternator load reduction
• Hot climate applications requiring reliable operation up to 80°C ambient temperature
• Remote area touring where dust, water crossings, and vibration resistance is essential

Warranty Period
2 years manufacturer warranty (REDARC standard)

Coverage
Covers manufacturing defects in materials and workmanship for BCDC1250D unit. Warranty applies from date of purchase with valid proof of purchase.

Exclusions
Does not cover damage from improper installation, incorrect input voltage exceeding 9-32V DC range, reverse polarity connection, physical impact damage, water ingress from inadequate sealing or mounting, overheating from insufficient ventilation clearance, use without proper input/output fusing (60A recommended), or use with incompatible battery types without proper configuration.

Installation Requirements
Installation must follow REDARC installation manual specifications. Warranty validity requires proper wire gauge selection for 50A current capacity, secure mounting in ventilated location, correct fusing on input and output circuits using REDARC FK60 or equivalent 60A fuse kits (not supplied with unit), and configuration for correct battery chemistry. Installation by qualified automotive electrician recommended.

Mounting Recommendations
REDARC vehicle-specific 304 stainless steel mounting brackets available separately for optimal installation in engine bay locations with cooler airflow. Brackets designed to utilize existing vehicle mounting points.

Australian Support
All warranty claims processed through REDARC Australia with local technical support. Service provided through authorized REDARC service centers nationwide. Warranty terms comply with Australian Consumer Law provisions.
