Redarc BCDC Core25 In-Cabin 12/24V 25A DC Battery Charger BCDCN1225 LITHIUM MPPT

BCDCN1225 Charger Specifications
Charging Current: 25A maximum DC output
Input Voltage: 9-32V DC (12V and 24V compatible)
Charging Stages: Multi-stage (bulk, absorption, float)
Efficiency: >95%
Operating Temperature: -20°C to +80°C ambient
Cooling: Convection cooling, no fans

Battery Compatibility
Types Supported: AGM, Gel, Standard Lead Acid, Calcium, LiFePO4
Auxiliary Battery Voltage: 12V systems
Charging Profiles: Automatic selection or manual configuration
Temperature Compensation: Yes (for lead-acid batteries)
LiFePO4 Requirements: Battery must have internal cell management system

Physical Specifications
Mounting: Bracket mount with vibration isolation
Protection Rating: IP 65
Cable Entry: Bottom or side cable entry

Wiring Kit Specifications
Maximum Cable Length: 8.5 metres from starter to auxiliary battery
Cable Type: Tinned copper automotive-grade
Current Capacity: 25A continuous
Pre Crimped: Battery end pre-terminated with ring terminals

Green Power Priority™
Automatically prioritises solar input when available
Reduces alternator load and fuel consumption
Seamless transition between DC and solar charging
Maximum solar power extraction via MPPT

Electrical Protection
- Reverse polarity protection on all inputs
- Over-voltage protection (>32V)
- Over-current protection with automatic current limiting to 25A
- Short circuit protection with instant cutoff
- Over-temperature shutdown at 80°C
- Spark-free connection with soft-start circuit

Battery Protection
- Battery isolation prevents starter battery drain during charging
- Low voltage disconnect protects auxiliary battery from over-discharge
- Temperature-compensated charging prevents thermal damage
- Automatic charge profile prevents overcharging

Installation Safety
- Inline fuse protection on DC input (included in wiring kit)
- Correctly rated fuses for 25A output
- Weather-sealed fuse holders in wiring kit
- Pre-crimped terminals reduce installation errors

System Monitoring

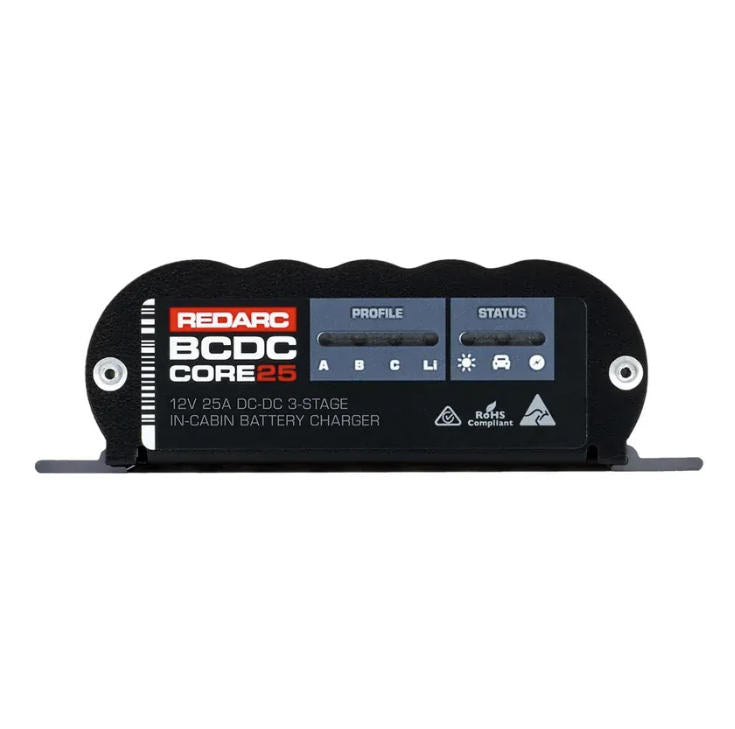

- LED status indicators on charger unit
- Charging status, fault indication, power source indication
- Compatible with external battery monitors for state of charge tracking

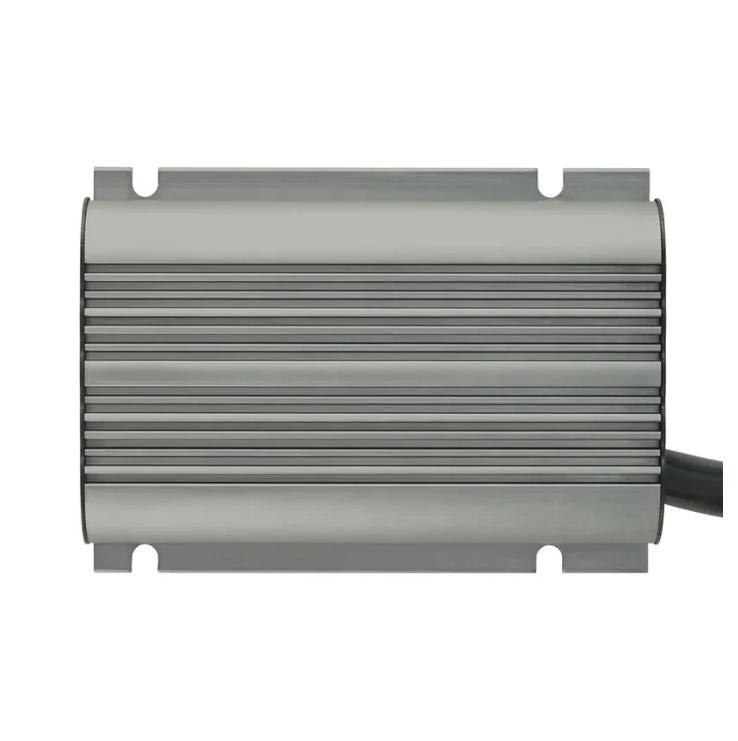

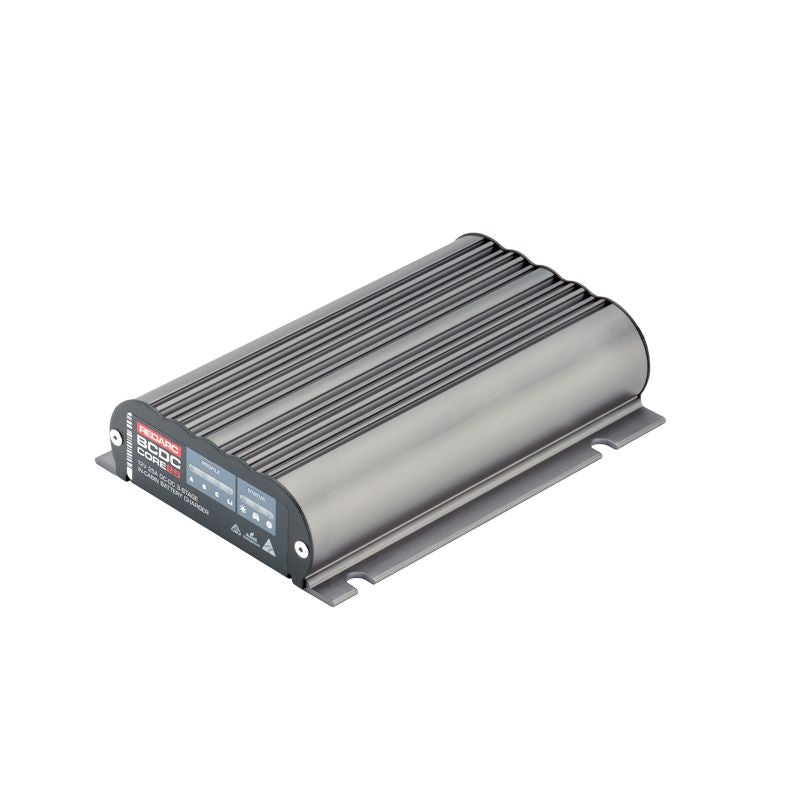

BCDCN1225 Charger Housing
Sealed aluminium enclosure with conformal coating on PCB for moisture and vibration resistance. Fan-free convection cooling design operates up to 80°C ambient. Compact dimensions suitable for under-seat, side panel, or floor mounting.

Wiring Kit Components

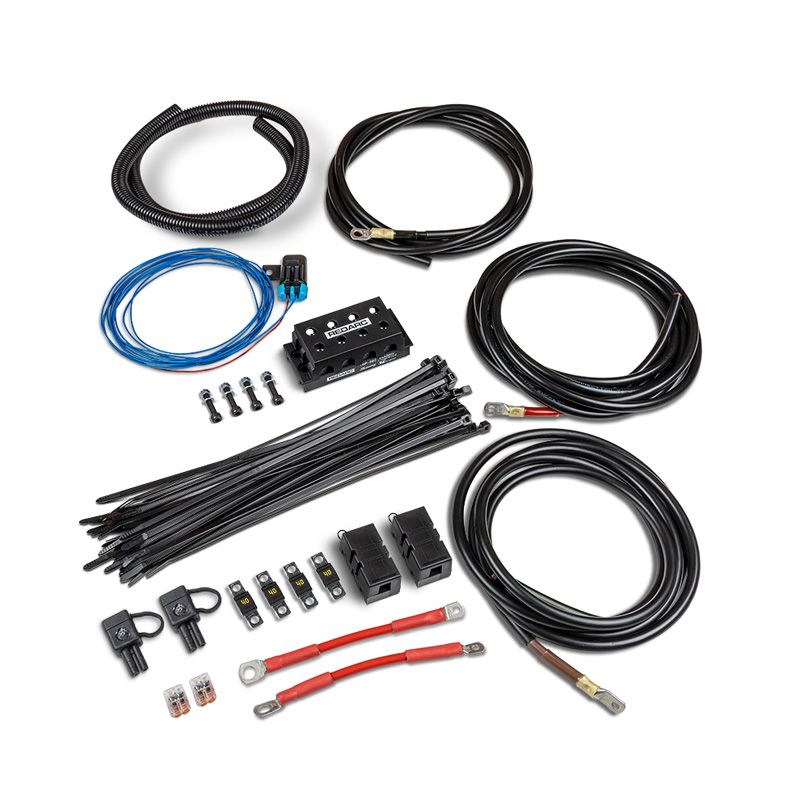

Pre crimped tinned copper cables with automotive-grade insulation. Terminal block with plastic cover allows field trimming without special tools. Fuse kit includes inline fuse holders with weather seals. WAGO connectors for solar connections. Protective conduit included for exposed cable runs.

Connection Terminals
Screw terminals on charger for DC input, DC output, and solar input. Ring terminals pre-crimped on battery cables. Anderson connector [if included] for solar panel connection.

Mounting Hardware
Stainless steel mounting bracket with vibration-resistant rubber isolation mounts. M5 socket head screws, nylon locking nuts, and flat washers included.

Primary Applications
- In-cabin dual battery systems for 4WD vehicles
- Ute/pickup truck with auxiliary battery in rear tray or canopy
- Wagon/SUV with auxiliary battery under rear floor or cargo area
- Camper trailer battery charging via Anderson plug
- Caravan auxiliary battery systems

Installation Locations
- Under rear seats in wagons or crew cab utes
- Behind side panels in cargo areas
- Under rear floor in 4WD cargo spaces
- Inside canopy or tray-mounted battery boxes
- In-cabin drawer systems

Typical System Configuration
Charges single 12V auxiliary battery from vehicle alternator and/or solar panels. Suitable for battery capacities 50Ah to 200Ah. Compatible with high-current loads including inverters (up to ~2000W), DC fridges, lighting, water pumps, and communication equipment.

Charging Sources
- Vehicle alternator (DC-DC) while driving - compatible with standard and variable voltage alternators
- Simultaneous DC and solar charging with automatic source prioritization

Cable Run Requirements
Wiring kit supports installations where starter and auxiliary batteries are separated by 3-8.5 metres. For shorter runs (<3m), standard shorter cable kits recommended. For runs exceeding 8.5m, not suitable.

Not Suitable For
24V auxiliary battery charging (charger is 12V output only). Starter battery charging (auxiliary battery systems only). Use without proper battery management system on LiFePO4 batteries.

• RCM (Regulatory Compliance Mark) - Australian electrical compliance
• EMC compliance for automotive installations
• Variable voltage alternator certified
• Automotive-grade components meeting ADR standards
• Designed, manufactured, and tested in Australia

Installation Compliance
Installation must follow REDARC instructions and comply with vehicle electrical regulations. Cable routing must avoid heat sources, sharp edges, and moving components. Grommets required for bulkhead penetrations.

Package Contents

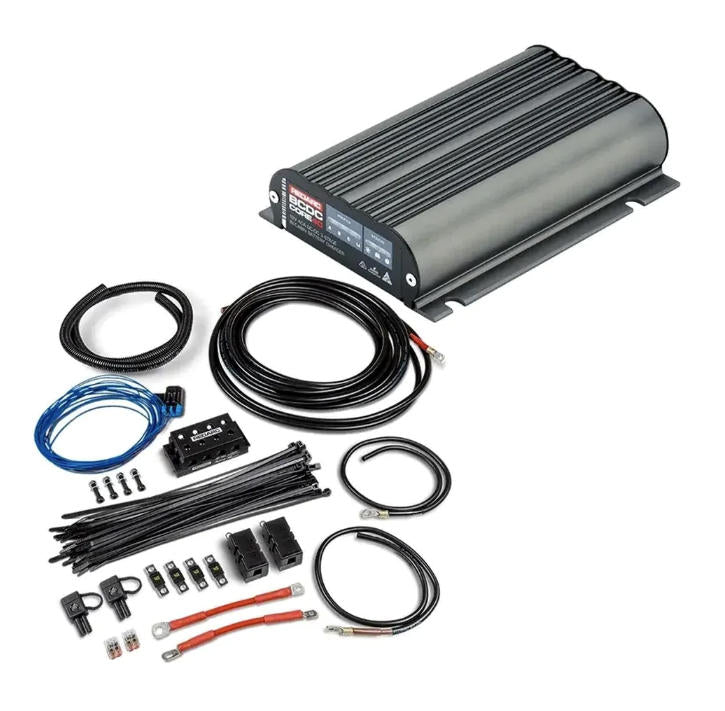

- BCDC Core25 In-Cabin 25A DC Battery Charger (BCDCN1225)
- Brown, Black, and Red cables (pre-crimped one end)
- Blue cable
- 150mm (6") Red cable (shorter run)
- Terminal block with plastic cover
- M5 x 25mm socket head screws
- M5 nylon locking nuts
- M5 flat washers
- Fuse kit (inline fuse holders and fuses)
- WAGO connector and boot (for solar connections)
- 1m (39") protective conduit
- Cable ties
- Mounting hardware
- Installation instructions

Not Included (Must Purchase Separately)
- Auxiliary battery ground cable (required)
- Solar-to-Anderson cable (if using solar input)
- Solar panels
- Batteries
- Cable grommets for bulkhead penetrations
- Additional cable ties or mounting brackets as needed

Warranty Period
2 years manufacturer warranty (REDARC standard)

Coverage
Covers manufacturing defects in BCDCN1225 charger unit and all wiring kit components (cables, fuses, fuse holders, connectors, terminal blocks, hardware).

Exclusions
Does not cover damage from improper installation, incorrect wiring, water ingress, physical damage, overload beyond 25A capacity, use with batteries without internal BMS (for LiFePO4), operation outside specified temperature range, or incorrect cable routing causing chafing or heat damage.

Installation Requirement
Professional installation by qualified auto electrician recommended. Warranty valid with proper installation following REDARC instructions. All connections must be clean, tight, and corrosion-free.

Australian Support
Warranty claims processed through REDARC Australia with local technical support.
