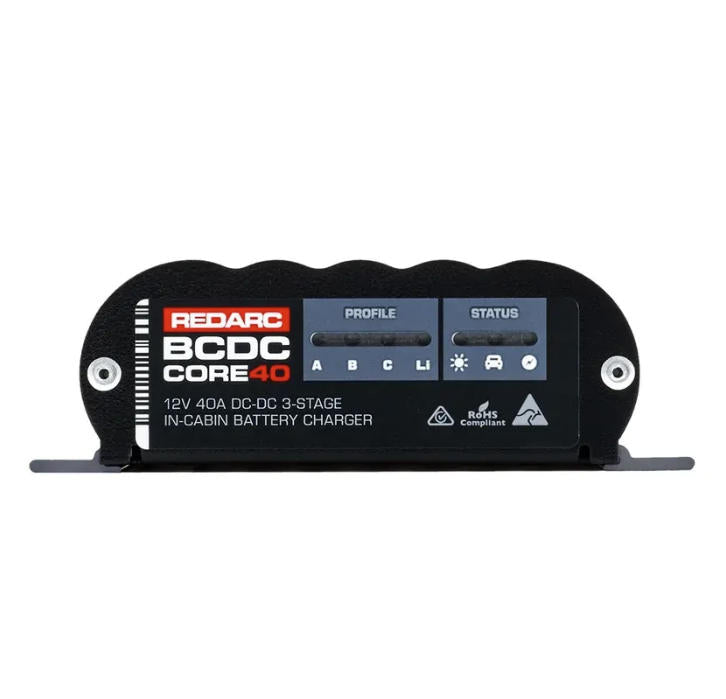

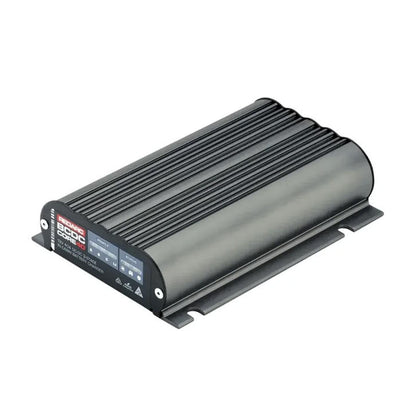

Redarc BCDC Core40 In-Cabin 12V 40A DC-DC Battery Charger BCDCN1240 LITHIUM MPPT

Cable Specifications
Maximum Length: 8.5 metres cable run from front to rear battery
Cable Type: Tinned copper automotive-grade
Current Capacity: 40A continuous (matches BCDCN1240 output)

Fuse Specifications
Fuse Type: ANL or MIDI fuse
Fuse Holder: Inline automotive grade with weather seal

Connector Types
Terminal Block: Screw-type for length adjustment
Battery Terminals: Ring terminals (pre crimped on one end)

Compatibility
Compatible Charger: BCDCN1240 DC-DC battery charger only
System Voltage: 12V and 24V
Alternator Types: Standard and variable voltage (smart) alternators
Battery Types: AGM, Gel, Standard Lead Acid, Calcium, LiFePO4

Electrical Protection
- Inline fuse protection on DC input cable
- Correctly rated fuses for 40A charger output
- Weather-sealed fuse holders prevent moisture ingress
- Tinned copper prevents corrosion at connection points

Installation Safety
- Pre-crimped terminals reduce installation errors
- Terminal block allows professional cable trimming to length
- Colour coded cables for positive/negative identification
- Cable gauge rated for full 40A continuous current

Heat Management
- Cable insulation rated for engine bay temperatures
- Adequate wire gauge prevents voltage drop and heat buildup
- Fuse holders positioned for safe heat dissipation

Note:
Auxiliary battery ground cable and solar-to-Anderson cable sold separately and must be purchased for complete installation.

Cable Construction
Tinned copper conductors with automotive-grade PVC or cross-linked polyethylene insulation. UV resistant outer sheath for exposed installations.

Pre-Crimped Terminals
Factory-crimped ring terminals on battery end with heat-shrink insulation. Professional crimp quality ensures low-resistance connection. Charger-end connections pre-terminated to match BCDCN1240 input terminals.

Terminal Block
Screw-type terminal block with brass terminals and polycarbonate housing. Allows field trimming of cable length without requiring special crimping tools. Rated for automotive environment.

Fuse Holders
Inline ANL or MIDI fuse holders with weather-sealed caps. Corrosion-resistant brass contacts. Mounting holes for secure installation to vehicle chassis or battery box.

Anderson Connectors
Heavy-duty Anderson connector for solar panel connection.

Primary Applications
- Ute/pickup truck with auxiliary battery in rear tray or canopy
- Wagon/SUV with auxiliary battery under rear floor or cargo area
- 4WD vehicles with front engine and rear battery configuration
- Dual battery systems where batteries are separated by 3-8.5 metres

Typical Installation Configurations
- Boot/trunk-mounted auxiliary battery systems
- Canopy-mounted battery boxes on utes
- Under-seat or rear floor auxiliary batteries in wagons
- Drawer system battery installations in 4WD cargo areas

Compatible with BCDCN1240 Charger Features
When used with BCDCN1240:
- 40A DC-DC charging from vehicle alternator
- Green Power Priority™ (solar takes priority over alternator)
- Simultaneous DC and solar charging
- Compatible with standard and variable voltage alternators

Installation Requirements
Requires BCDCN1240 DC-DC battery charger (sold separately). Auxiliary battery ground cable must be purchased separately. Solar-to-Anderson cable sold separately if solar input used. Professional installation recommended for correct cable routing, grommet installation, and electrical connections.

Not Suitable For
Short cable run installations (<3 metres) - standard shorter cable kits available. Battery-to-battery distances exceeding 8.5 metres. Use with other BCDC models (designed specifically for BCDCN1240).

• Automotive-grade components meeting Australian Design Rules (ADR)
• Cables and terminals meet SAE (Society of Automotive Engineers) standards
• Fuses and fuse holders comply with automotive electrical safety standards
• UV-resistant materials for Australian conditions
• Designed for REDARC BCDCN1240 manufactured in Australia

Installation Compliance
Installation must comply with relevant vehicle electrical regulations. Cable routing must avoid heat sources, sharp edges, and moving components. Grommets required for bulkhead penetrations.

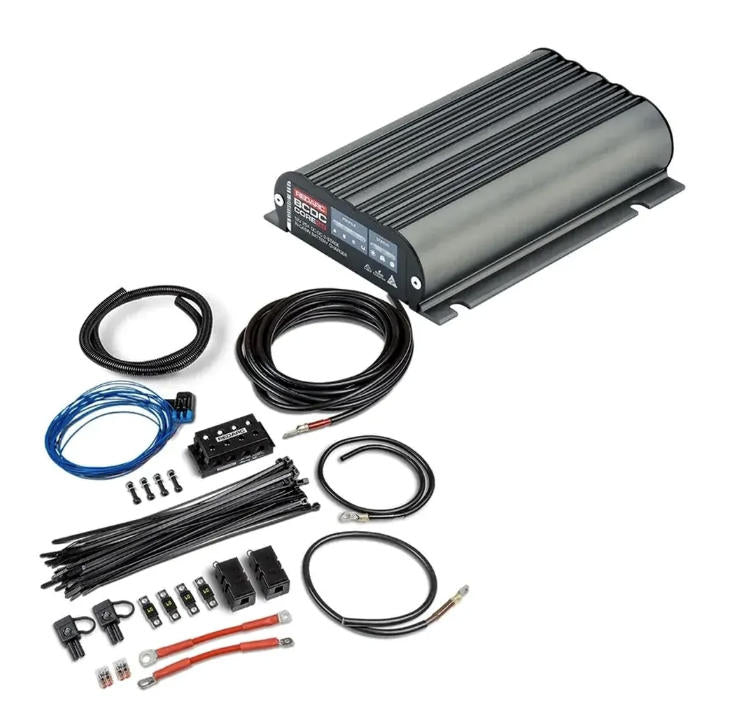

Package Contents
- BCDCN1240 DC-DC battery charger
- DC input cable (pre-crimped one end) - connects starter battery to BCDCN1240
- DC output cable (pre-crimped one end) - connects BCDCN1240 to auxiliary battery
- Solar input cable with Anderson connector
- Inline fuse holder(s) with fuses
- Terminal block for cable length adjustment
- Anderson connector for solar panel connection
- Installation hardware (cable ties, mounting brackets if included)
- Installation instructions

Not Included (Must Purchase Separately)
- Auxiliary battery ground cable (required for installation)
- Solar-to-Anderson cable (if using solar input)
- Cable grommets for bulkhead penetrations
- Batteries, solar panels, mounting hardware for charger

Warranty Period
2 years manufacturer warranty (REDARC standard)

Coverage
Covers manufacturing defects in cables, connectors, fuses, fuse holders, and terminal blocks included in the kit.

Exclusions
Does not cover damage from improper installation, incorrect cable routing causing chafing or heat damage, over-current beyond 40A capacity, physical damage during installation, water ingress from unsealed connections or missing grommets, or use with incompatible chargers.

Installation Requirement
Warranty valid with proper installation following REDARC instructions. Cables must be correctly sized, routed, and protected. All connections must be clean, tight, and corrosion-free.

Australian Support
Warranty claims processed through REDARC Australia or authorized dealers.
