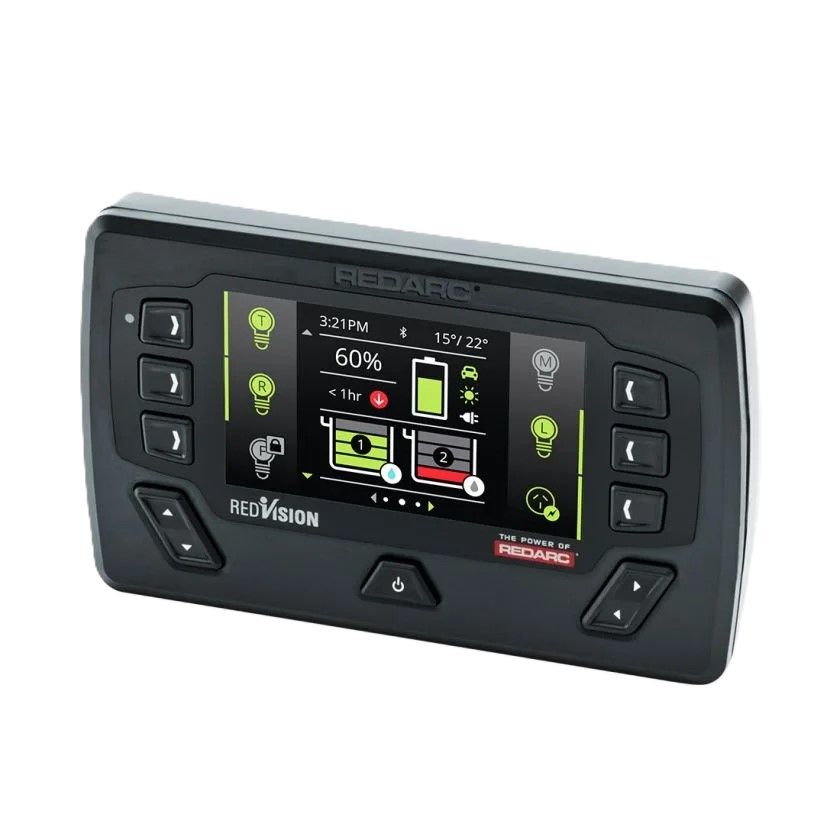

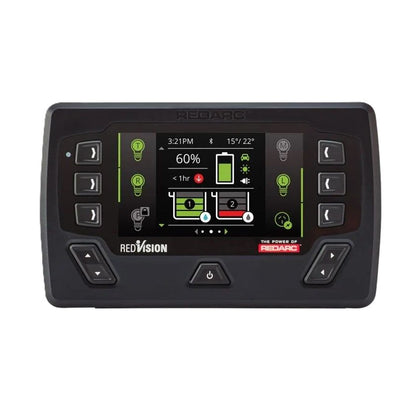

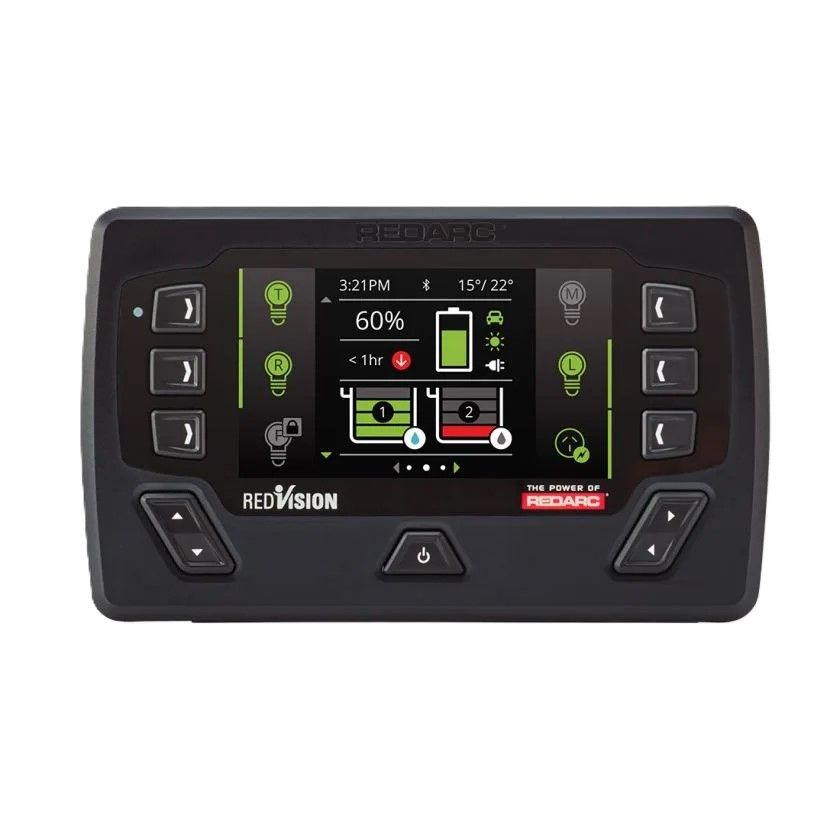

The REDARC RedVision Display Unit (DISP4300-RC) is a 4.3-inch touchscreen display for TVMS Rogue and TVMS Prime power distribution systems, providing real-time monitoring of battery status, water tank levels, and control of 12V electrical devices via touchscreen interface and Bluetooth app connectivity.
Physical Dimensions
Width: 178mm
Height: 108mm
Depth: 26mm
Weight: 300g
Mounting: Panel mount with fascia trim
Electrical Specifications
Input Voltage: 9-32V DC (12V/24V compatible)
Communication: R-Bus via RJ45 connector
Cable Length: 5m RJ45 R-Bus cable included
Termination: RJ45 terminating resistor included
Environmental Specifications
Operating Temperature: -20°C to +75°C
Storage Temperature: -30°C to +85°C
Vibration Resistance: Automotive grade
Bluetooth Specifications
Compatible Devices: iOS and Android smartphones/tablets
App: RedVision User App (free download)
Electrical Protection
- Reverse polarity protection on power input
- Over-voltage protection (>32V)
- Under-voltage protection (<9V)
- ESD (Electrostatic Discharge) protection on all interfaces
- Short circuit protection
Environmental Protection
- Front panel rated for moisture and dust resistance
- UV-resistant screen coating for sunlight exposure
- Vibration-resistant mounting design
- Temperature monitoring with over-temperature warnings
System Integration
- Fault indication for communication loss with TVMS modules
- Low battery voltage warnings
- Over-current alerts for connected loads
- Tank level sensor fault detection
Display Housing
Plastic enclosure with aluminium heat sink on rear panel. Front panel with IP rating 65 for moisture and dust resistance. UV stabilised screen lens prevents yellowing and glare.
Mounting Method
Panel-mount installation with included fascia trim. Requires 170mm x 100mm (approx) cutout. Optional mounting spacer included for various panel thicknesses.
Connection Interface

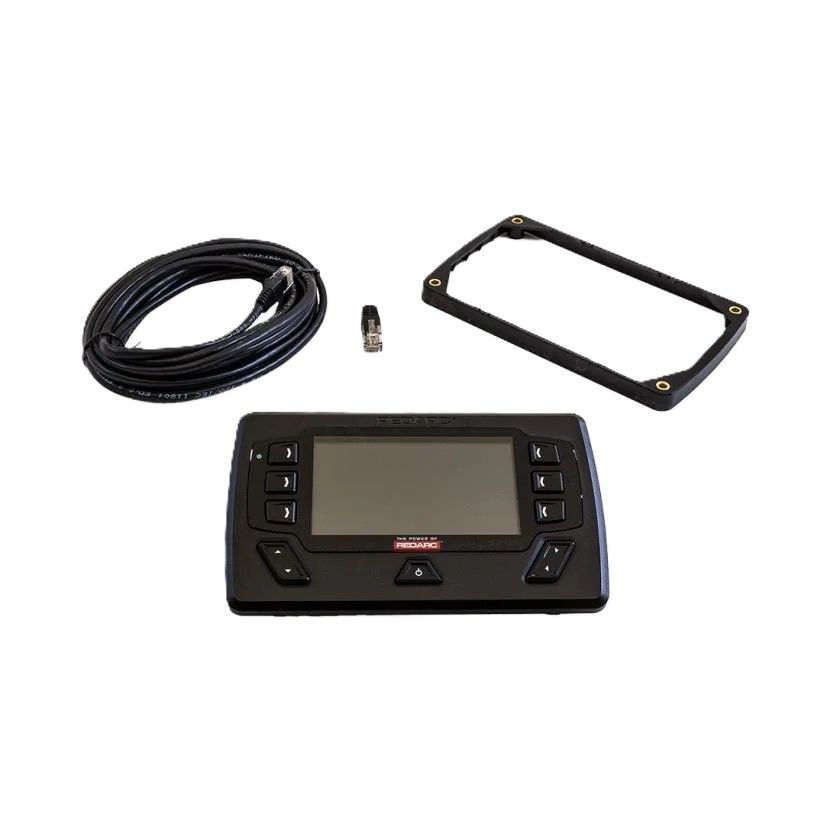

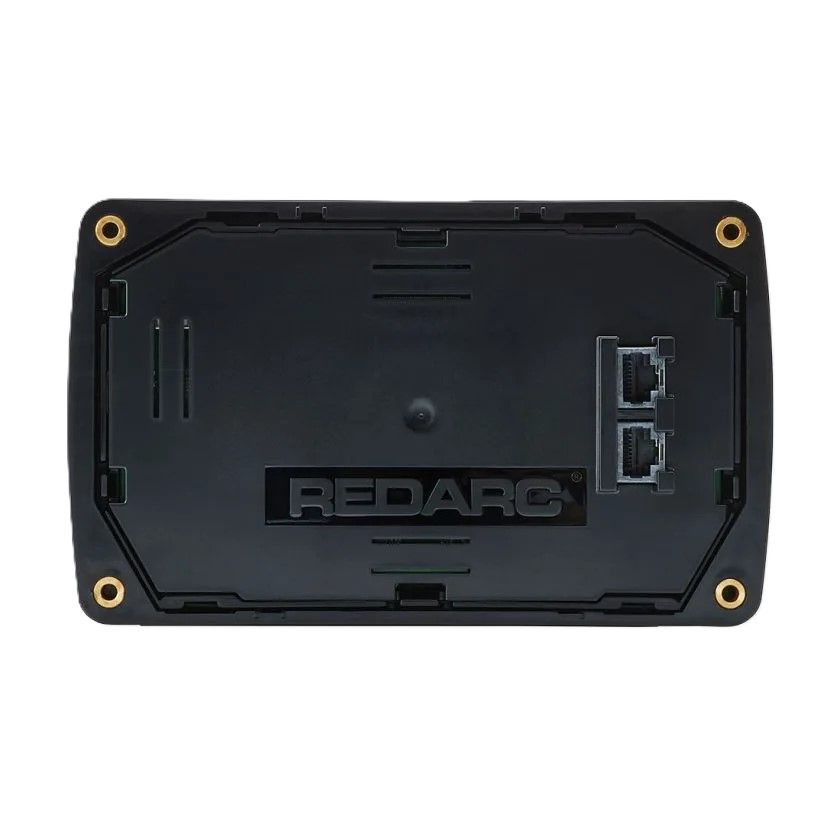

RJ45 R-Bus connector on rear panel for communication with Manager30 or TVMS modules. 5 metre black RJ45 cable included. Terminating resistor provided for end of line installation.
Screen Protection
Toughened glass or polycarbonate screen protector. Scratch resistant coating. Anti glare surface treatment for outdoor visibility.
Primary Use Cases
- Replacement display for existing RedVision systems
- Secondary display for monitoring from different vehicle locations
- Upgrade display for older Manager30 systems (BMS1230S2, BMS1230S3)
- Dashboard or wall-mount monitoring in caravans and motorhomes
System Compatibility
Compatible ONLY with the following REDARC systems:
- Manager30 Battery Management Systems: BMS1230S2, BMS1230S3
- TVMS Rogue Control Module: TVMS1240
- TVMS Prime Distribution Box: TVMS1280
NOT compatible with:
- Manager30 models prior to BMS1230S2
- Standalone use without TVMS or Manager30 system
- Non-REDARC battery management systems
Installation Locations
- Caravan interior wall or cabinet panel
- Motorhome dashboard or living area wall
- 4WD cabin dash or centre console area
- Marine cabin bulkhead or navigation console
Monitoring Functions
Displays battery voltage, charge/discharge current, state of charge percentage, time remaining estimate, water tank levels (up to 6 tanks), ambient temperature, and system fault codes when connected to compatible Manager30 or TVMS system.
RCM (Regulatory Compliance Mark) - Australian electrical compliance
EMC compliance for automotive installations
Designed, manufactured, and tested in Australia for Australian conditions
Automotive-grade component testing for vibration and temperature extremes
App Requirements
RedVision User App: Free download for iOS (App Store) and Android (Google Play)
Bluetooth connection to display required for app functionality
Not Included
Manager30 battery management system, TVMS control modules, power supply cables, panel mounting screws (use appropriate fasteners for installation surface).
Warranty Period
2 years manufacturer warranty (REDARC standard)
Coverage
Covers manufacturing defects in materials and workmanship for DISP4300-RC display unit and included accessories (mounting spacer, fascia, cable, terminating resistor).
Exclusions
Does not cover damage from improper installation, incorrect voltage supply, physical damage, water ingress through unsealed panel cutout, screen damage from impact or excessive force, or use with incompatible systems.
Compatibility Verification
Display must be used with compatible Manager30 (BMS1230S2, BMS1230S3) or TVMS modules (TVMS1240, TVMS1280). Use with incompatible systems may void warranty.
Australian Support
All warranty claims processed through REDARC Australia with local technical support.
