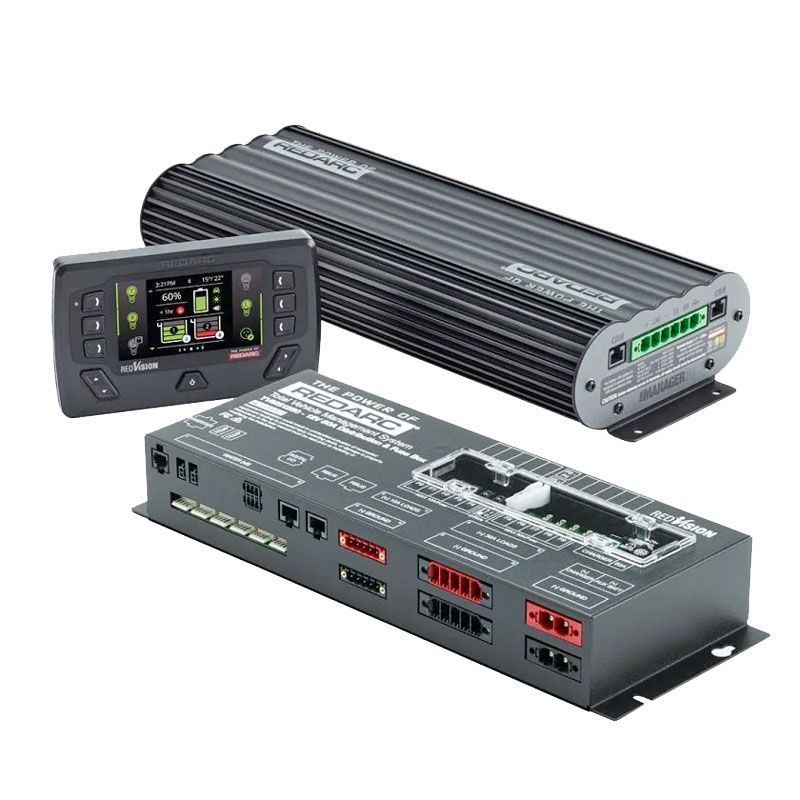

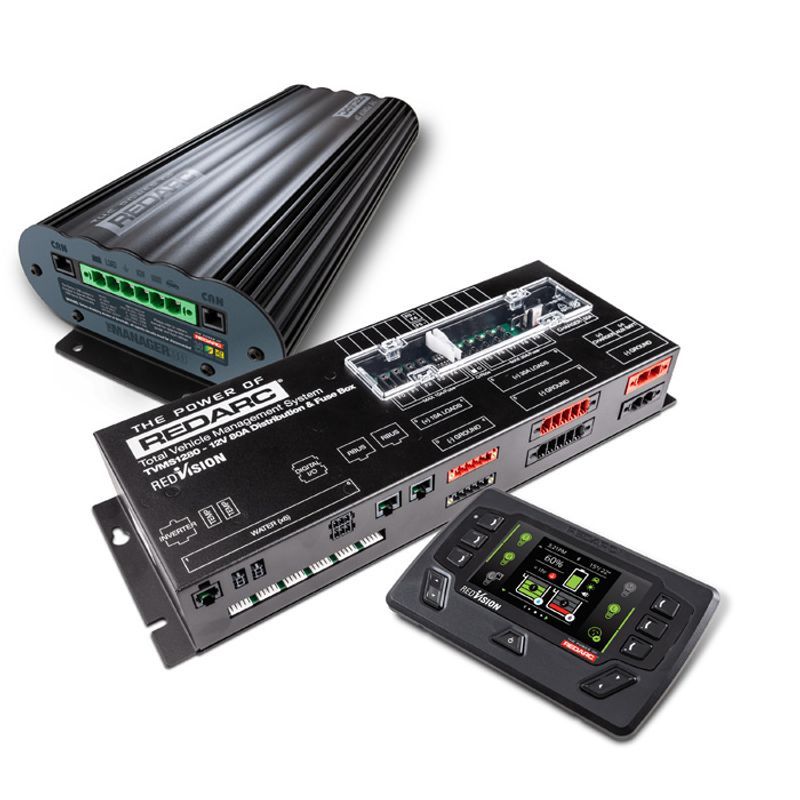

REDVISION MANAGER 30 KIT TVMS1280 & BMS1230S3

Manager30 Battery Management System (BMS1230S3)
Charging Current: 30A maximum
DC-DC Input: 9-32V (vehicle alternator)
Solar Input: Maximum 520W MPPT regulation
AC Input: 240V mains charging
Battery Types: AGM, Gel, Calcium, VRLA, Lead Acid, LiFePO4
Operating Temperature: -20°C to +80°C ambient
Charging Stages: Multi-stage with automatic profile selection
Efficiency: >95%

TVMS1280 Distribution Box
Output Channels: 10x switched outputs
- 5x channels: 30A maximum per channel
- 5x channels: 10A maximum per channel
Total Load Capacity: 200A combined (subject to wire gauge and fusing)
Sensor Inputs: 6x analogue (0-5V for tank level, temperature)
Protection: Individual circuit breakers per channel
Mounting: DIN rail or surface mount

RedVision Display
Screen Type: Touchscreen LCD
Communication: CAN bus to Manager30 and Distribution Box
Bluetooth: Built-in for smartphone app connectivity
Mounting: Panel mount installation
Display Data: State of charge, voltage, current, temperature, tank levels

App Requirements
Configurator App: Initial setup and configuration (iOS/Android)
User App: Daily monitoring and control (iOS/Android)
Connection: Bluetooth to RedVision display

Electrical Protection
- Individual circuit breakers on all 10 output channels in TVMS1280
- Reverse polarity protection on charge inputs
- Over-current protection with automatic disconnect
- Short circuit protection per output channel
- Low voltage disconnect (LVD) prevents battery over-discharge
- Over-temperature shutdown at 80°C for Manager30

Battery Management
- Automatic charge profile selection based on battery type
- Temperature-compensated charging for lead-acid batteries
- Battery isolation prevents starter battery drain during charging
- Configurable low voltage cutoff thresholds
- State of charge monitoring prevents over-discharge

System Monitoring
- Real-time fault indication on display
- Bluetooth alerts for over-temperature, low voltage, overload
- Historical data logging for 30 days
- Visual and app-based warnings for system faults

Manager30 Housing
Fully sealed enclosure rated for engine bay or cabin installation. Fan-free cooling design operates up to 80°C ambient. Vibration-resistant mounting brackets included. IP rating: 65

TVMS1280 Distribution Box
Powder coated steel enclosure with modular circuit breaker layout. DIN rail mounting for circuit protection components. Surface mount or cabinet installation. Pre wired terminals for Manager30 CAN bus connection.

RedVision Display
Panel-mount touchscreen with IP65 rated front panel. UV-resistant screen coating for sunlight visibility. Suitable for indoor cabin installation. CAN bus communication wiring harness included.

Wiring Standards
Automotive-grade connectors and terminals throughout. Pre-terminated wiring harnesses between Manager30, TVMS1280, and display. Anderson SB50 connections for high-current battery inputs.

Primary Applications
- Caravan and camper trailer house battery systems
- 4WD auxiliary battery charging and power distribution
- Marine house battery management and accessory control
- Motorhome electrical systems with multiple loads
- Off-grid cabin battery management

Typical Load Control
Compatible with 12V LED lighting, DC fridges/freezers, water pumps, ventilation fans, diesel heaters, inverters (up to 30A loads), electric steps, awnings, entertainment systems, and USB charging outlets.

Monitoring Capabilities
Tracks battery state of charge, charge/discharge current, battery temperature, up to 6 water tank levels, ambient temperature sensors, and voltage monitoring for auxiliary batteries.

Charging Sources
Vehicle alternator (DC-DC while driving), solar panels up to 520W with MPPT optimization, 240V mains power at campgrounds or home storage.

Installation Locations
Manager30: Engine bay or cabin mounting. TVMS1280: Internal cabinet or under-seat installation. Display: Dashboard or wall-mount panel in living area.

• Australian mains power safety standards (AS/NZS 3001)
• RCM (Regulatory Compliance Mark) - Australian electrical compliance
• EMC compliance for automotive installations
• IP65 rating on RedVision display front panel
• Designed, manufactured, and tested in Australia


App Availability
RedVision Configurator App: Required for initial setup (iOS/Android)
RedVision User App: Daily monitoring and control (iOS/Android)
Both apps available free download from App Store and Google Play

Warranty Period
2 years manufacturer warranty (REDARC standard)

Coverage
Covers manufacturing defects in materials and workmanship for all three components (Manager30 BMS1230S3, TVMS1280 Distribution Box, RedVision Display).

Exclusions
Does not cover damage from improper installation, incorrect wiring, water ingress from unsealed installations, physical damage, overload beyond rated capacity, or use outside specified operating temperatures.

Australian Support
All warranty claims processed through REDARC Australia with local technical support and spare parts availability.
