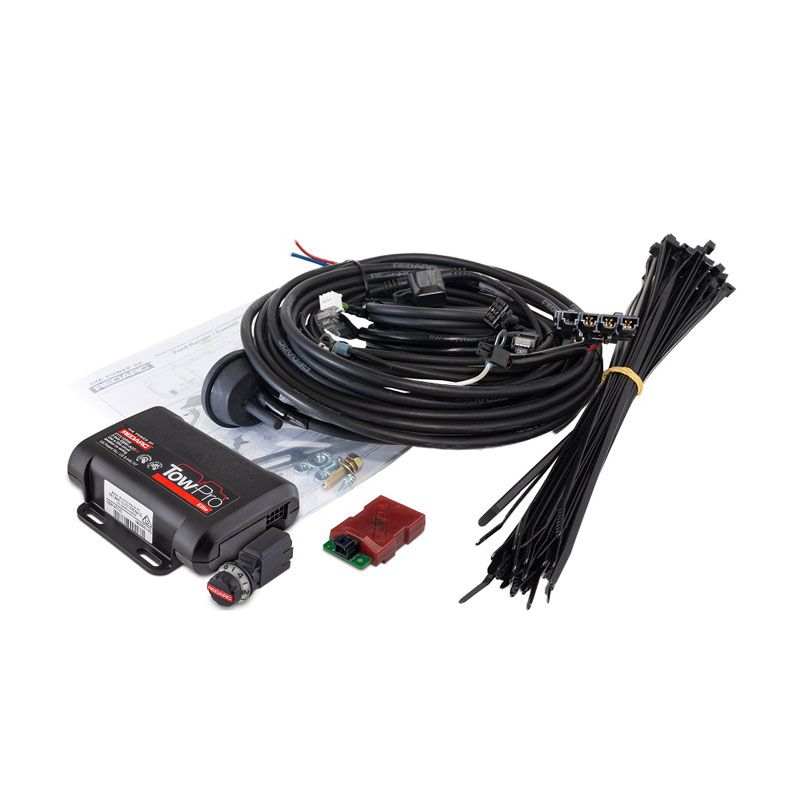

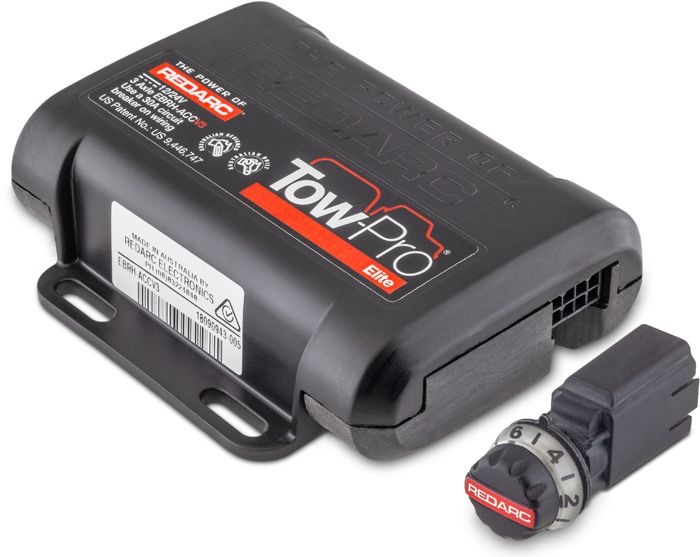

The Tow-Pro Elite V3 Brake Controller Kit (EBRH-ACCV3 + TPWKIT-013) is a proportional electric brake controller package for trailer and caravan braking systems, including the Tow-Pro Elite V3 controller unit and universal standard-length wiring harness for 12V and 24V vehicle installations.
Proportional brake controller with electronic and electric/hydraulic brake compatibility
SwayStop™ trailer sway control with independent trailer brake activation
Compatible with ESC (Electronic Stability Control) and AL-KO DSC systems
12V and 24V vehicle electrical system compatibility
Single-button remote control for mode switching and brake intensity adjustment
Automatic and manual braking modes
TPWKIT-013 universal wiring harness included for hard-wired installation
Flush-mount controller design with remote dash control
Real-time brake output monitoring
Overload and short circuit protection
Made in Australia

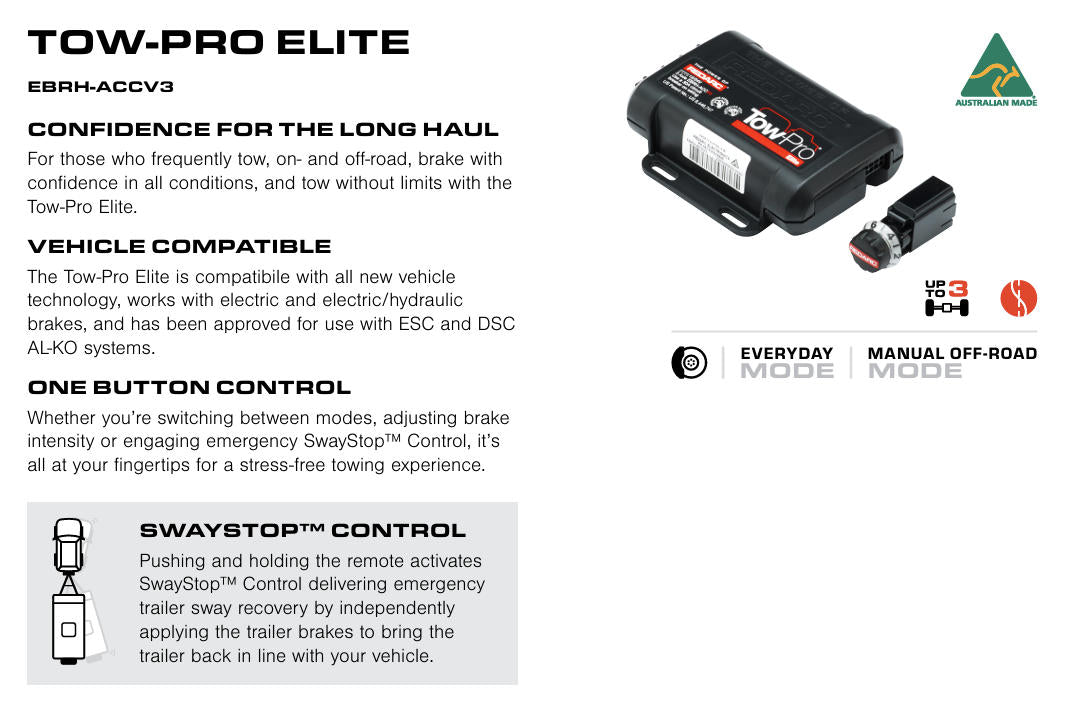

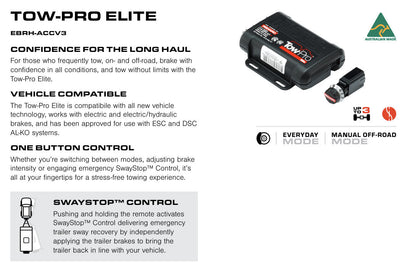

Tow-Pro Elite V3 Controller (EBRH-ACCV3)
Input Voltage: 9-32V DC (12V and 24V compatible)
Maximum Output Current: 15A continuous
Brake Type Compatibility: Electric, Electric/Hydraulic
Control Method: Proportional (inertia-based)
Braking Modes: Automatic, Manual, User-programmable
Response Time: <0.1 seconds
Operating Temperature: -40°C to +85°C
Mounting: Flush mount with remote control
TPWKIT-013 Wiring Kit
Type: Universal standard length hard-wired installation kit
Voltage Rating: 12V and 24V compatible
Remote Control
Type: Single-button dash-mounted control
Functions: Mode selection, brake intensity adjustment, SwayStop™ activation
Mounting: Adhesive or screw mount options
Trailer Sway Control
SwayStop™ function applies independent trailer brakes when activated, providing emergency sway recovery by realigning trailer with tow vehicle. Activated by pressing and holding remote button.
Electrical Protection
- Overload protection prevents damage from excessive current draw
- Short circuit protection with automatic shutdown
- Reverse polarity protection on power input
- Thermal protection with automatic temperature monitoring
- Overload indicator on display
Vehicle System Compatibility
- ESC (Electronic Stability Control) compatible - tested for interference-free operation
- AL-KO DSC (Dynamic Stability Control) approved
- ABS (Anti-lock Braking System) compatible
- Works with CAN bus vehicle systems
Brake System Monitoring
- Real-time brake output current display
- Fault detection for open circuit (trailer disconnected)
- Short circuit detection with visual alert
- Brake magnet temperature monitoring (electric brakes)
Controller Housing
Sealed electronics module with conformal coating for moisture and vibration resistance. Flush mount design for dashboard or under-dash installation. IP rating: 65
Remote Control Unit
Single button control with tactile feedback. Dust and moisture resistant construction. Suitable for dash mounting in driver's line of sight.

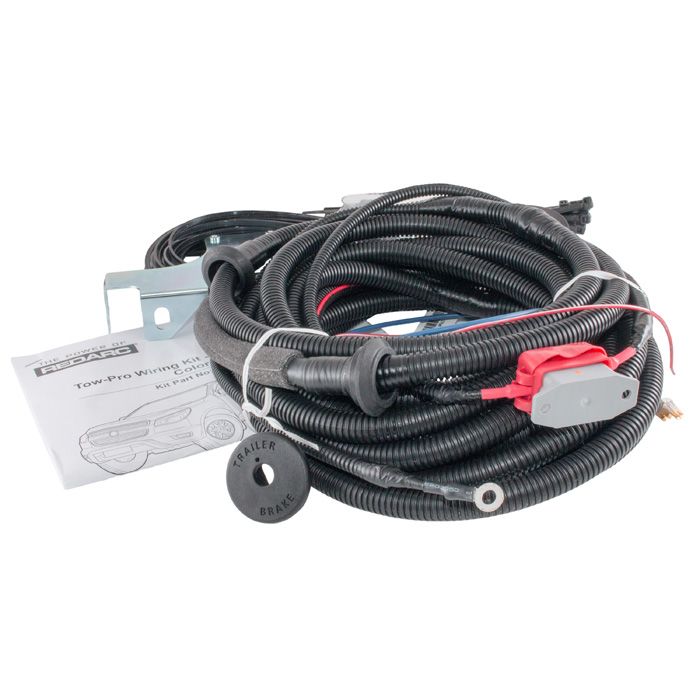

Wiring Harness (TPWKIT-013)
Automotive-grade copper wiring with tinned terminals. Pre terminated connections for controller, vehicle battery, and trailer plug.
Mounting Hardware
Stainless steel mounting brackets and screws included. Vibration resistant installation with rubber isolation mounts.
Primary Applications
- Caravan and camper trailer braking (electric brake systems)
- Boat trailer braking
- Horse float and livestock trailer braking
- Box trailer and tipper trailer braking
- Any trailer equipped with electric or electric/hydraulic brake systems
Vehicle Compatibility
Compatible with 12V and 24V vehicles including:
- 4WD vehicles (Mitsubishi Pajero, Toyota Fortuner, Hilux, Prado, Kluger)
- SUVs and passenger vehicles with towing capacity
- Light commercial vehicles and utes
- Heavy vehicles with 24V electrical systems
Brake System Types
- Electric brake magnets (drum brakes)
- Electric/hydraulic brake actuators
- Single-axle and tandem-axle trailers
- Maximum 15A brake current capacity
Installation Requirements
Hard-wired installation to vehicle electrical system. Requires connection to vehicle battery, brake light circuit, and trailer plug brake output pin. Professional installation by qualified auto electrician recommended.
ADR (Australian Design Rules) compliant for trailer brake controllers
RCM (Regulatory Compliance Mark) - Australian electrical compliance
ESC compatibility tested and certified
AL-KO DSC system approved
EMC compliance for automotive installations
Designed, manufactured, and tested in Australia
Note: Installation must comply with local road authority regulations for brake controller mounting location and operation.
Warranty Period
2 years manufacturer warranty (REDARC standard)
Coverage
Covers manufacturing defects in materials and workmanship for both Tow-Pro Elite V3 controller (EBRH-ACCV3) and TPWKIT-013 wiring kit.
Exclusions
Does not cover damage from improper installation, incorrect wiring, water ingress from unsealed installations, physical damage, overload beyond 15A rated capacity, or modifications to factory wiring.
Installation Requirement
Warranty valid with professional installation by qualified auto electrician. Retain installation documentation for warranty claims.
Australian Support
All warranty claims processed through REDARC Australia with local technical support.
