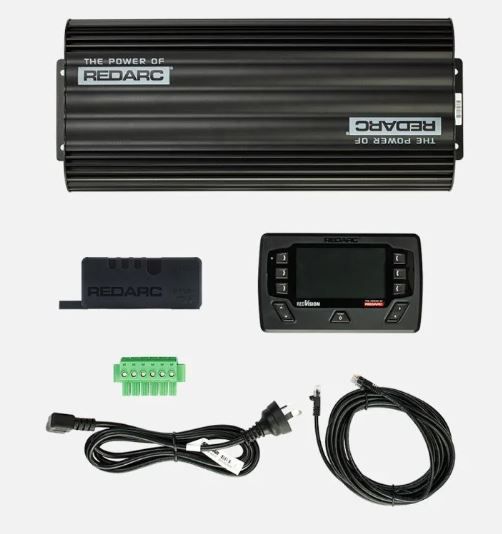

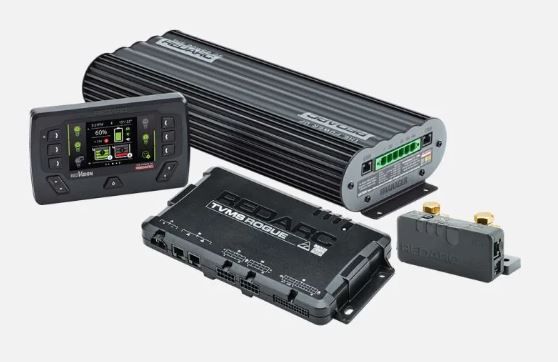

The TVMS Rogue RedVision System is a battery management and power distribution kit combining a Manager30 30A multi-stage charger, TVMS Rogue 10-channel control module, and RedVision touchscreen display for monitoring and controlling 12V electrical systems in caravans, camper trailers, and 4WD vehicles.
30A multi-stage DC-DC battery charger with MPPT solar regulation
10x 10A dimmable output channels with integrated smart fusing
8x physical switch inputs for wall-mounted controls
25mm profile TVMS Rogue module for confined space installation
Real-time battery monitoring via 4.3" touchscreen and smartphone app
Supports AGM, Gel, Calcium, VRLA, Standard Lead Acid, and LiFePO4 batteries
AC-DC mains charging capability (240V)
Two analogue sensor inputs for tank level and temperature monitoring
Programmable automation for load management
Made in Australia
Manager30 Charger Specifications
- Charging Current: 30A maximum
- Input Sources: Vehicle alternator (DC-DC), solar (MPPT), mains (AC-DC)
- Battery Types: AGM, Gel, Calcium, VRLA, Lead Acid, LiFePO4
- Operating Temperature: -20°C to +80°C ambient
- Charging Stages: Multi-stage with automatic profile selection
TVMS Rogue Control Module
- Output Channels: 10x switched, 10A maximum per channel
- Total Load Capacity: 100A continuous
- Dimming: PWM 0-100% on all channels
- Switch Inputs: 8x digital (12V compatible)
- Profile Depth: 25mm
- Fuse Type: Integrated smart fuses per channel
- Sensor Inputs: 2x analogue (0-5V or 4-20mA)

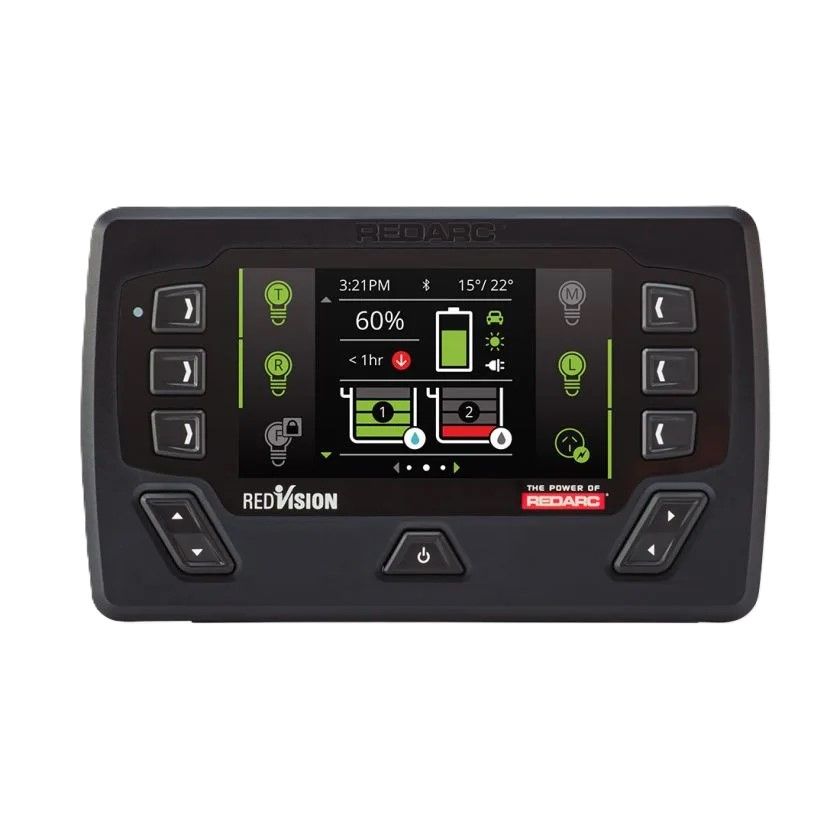

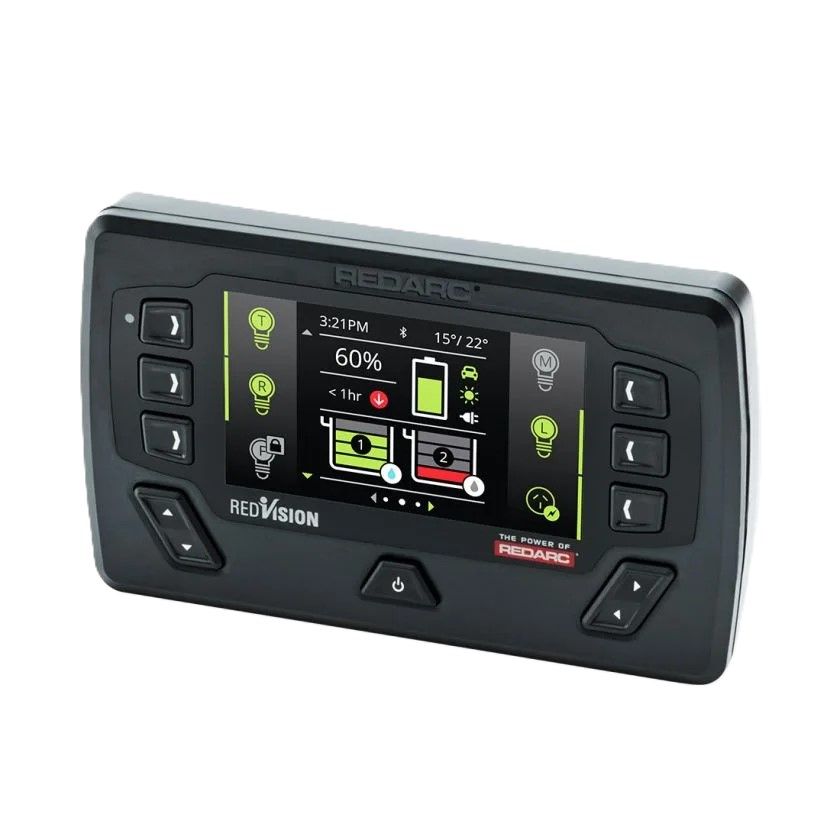

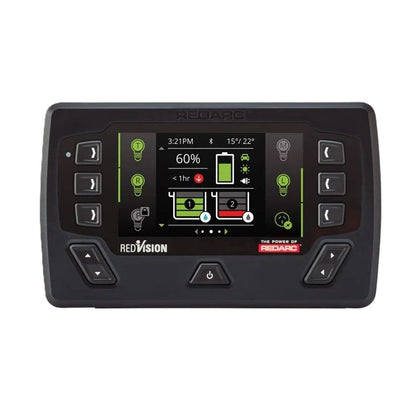

RedVision Display
- Screen Size: 4.3" touchscreen (DISP4300-RC)
- Mounting: Panel mount installation
- Communication: CAN bus protocol
App Compatibility
- Platforms: iOS and Android
- Functions: Monitoring, control, automation, configuration
- Network: Bluetooth connection to display
Electrical Protection
- Integrated smart fusing on all 10 output channels
- Reverse polarity protection on charge inputs
- Over-current protection (>10A per channel)
- Short circuit protection with automatic disconnect
- Low voltage disconnect (LVD) for battery protection
- Over-temperature shutdown at 80°C
Battery Management
- Automatic charge profile selection prevents overcharging
- Temperature-compensated charging for lead-acid batteries
- Battery isolation prevents starter battery drain
- Discharge current monitoring with configurable cutoff thresholds
System Monitoring
- Real-time fault indication on display
- Alert notifications for over-temperature, low voltage, overload conditions
- Historical data logging for troubleshooting
Manager30 Housing
Fully sealed enclosure with fan-free cooling design. IP rating 65. Designed for engine bay or cabin installation with vibration-resistant mounting.
TVMS Rogue Module
25mm low-profile aluminum housing with powder-coated finish. Integrated smart fuse board eliminates external fuse panels. DIN rail or surface mount installation options.
RedVision Display
Panel-mount 4.3" touchscreen with IP65 rated front panel. Suitable for indoor cabin installation. UV-resistant screen coating.
Wiring Standards
Pre terminated wiring harnesses with automotive-grade connectors. CAN bus communication between components. Anderson SB50 high-current connections for main power.
Primary Applications
- Caravan and camper trailer electrical systems
- 4WD auxiliary battery and accessory management
- Marine house battery charging and distribution
- Off-grid cabin power control
- Motorhome electrical systems
Typical Load Control
Compatible with 12V LED lighting circuits (dimmable), DC fridges and freezers, water pumps, ventilation fans, diesel heaters, communication equipment, USB charging outlets, and low-current accessories up to 10A per channel.
Installation Environments
Suitable for vehicles with limited mounting space. TVMS Rogue 25mm profile fits behind interior panels, under seats, or in narrow compartments. Manager30 can be mounted in engine bay or cabin locations.
Charging Sources
Vehicle alternator (while driving), solar panels up to [insert max wattage]W, 240V mains power at campgrounds or home.
Australian mains power safety standards (AS/NZS 3001)
RCM (Regulatory Compliance Mark) - Australian electrical compliance
EMC compliance for automotive installations
Designed and manufactured in Australia
Note: Configurator app required for initial setup. User app available for iOS and Android for daily monitoring and control.
Warranty Period
2 years manufacturer warranty (REDARC standard)
Coverage
Covers manufacturing defects in materials and workmanship for all three components (Manager30, TVMS Rogue, RedVision Display).
Exclusions
Does not cover damage from improper installation, incorrect wiring, water ingress from unsealed installations, physical damage, or use outside specified operating temperatures.
Australian Support
All warranty claims processed through REDARC Australia with local technical support.
